Please note that BNB Gen 2 panels are not compatible with Gen 1
. The top and supporting panels of Gen 2 have a smooth corner, which differs from the sharper corners of the previous generation. Additionally the supporting panel and side panels contains a second tab, which is incompatible with Gen 1.
We will continue to support replacement panels
, and artwork
services for BNB Fightstick Gen 1 models.

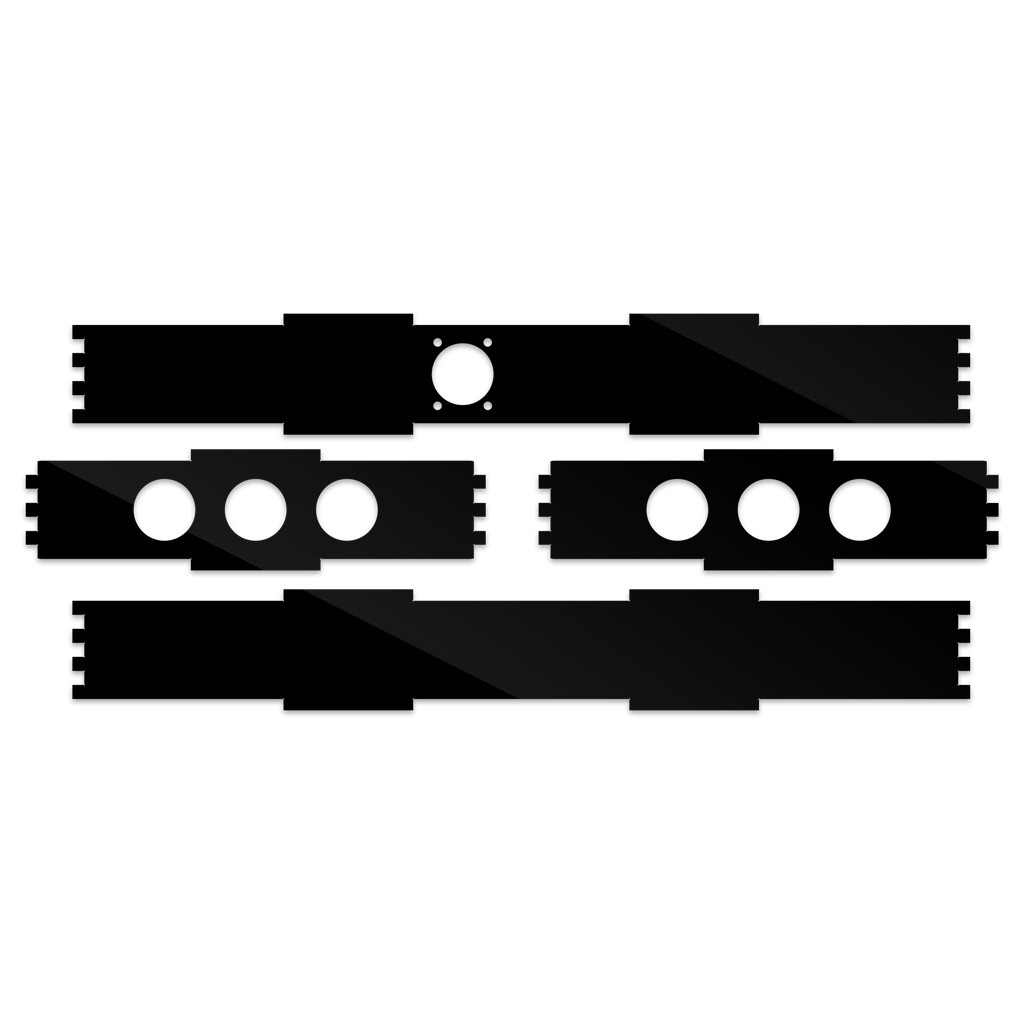

The sides of the BNB Clear Plexi Fightstick consist of the front side, back side, a left and right side consisting of three 24mm button holes. The front side (facing away from player) consists of a single cutout to mount a Neutrik NAUSB passthrough.
Gloss Texture on One Side
The all black BnB is designed for those who love the often sleek presentation of an all black Fightstick, or black with highlights of color that can make it stand out. Gloss has the darkest color and sleekest presentation, though important to note that gloss is more difficult to keep clean or free of visible fingerprints. Matte is slghtly brighter so it will not directly match solid black accessories, but is smudge and fingerprint-resistant. Please refer to the photos below for comparison between gloss and matte texture.
Please note that the opposite side of this plexi will have a black matte.
Pre-Wrapped in Paper or Film Backing
The panels are cut from acrylic sheets with protective brown paper or blue plastic film. You may see scratches or wear on the paper or film as the sheets are cut and transported from the acrylic manufacturer to us, and should not appear on the plexiglass once removed. To remove the film, use a fingernail on any available corner and proceed to pull away at the backing. The paper or film does not have adhesive and should not leave residue on the plexiglass.
Each side panel will include a set of four metal standoffs. These are used to support the top and support panels on the BNB Fightstick, and sized to the height of the acrylic sides you choose.
BNB Assembled Dimensions
Here are the Width x Length x Height dimensions of an assembled BNB Fightstick:
|Side Panel Height
Bit Bang Gaming Player LED Optional Front Panel Cut
When attached to most Brook console controller PCBs, the Bit Bang Gaming Player LED (sold separately) gives DIY enthusiasts a visual indicator of which controller port their Fightstick occupies on most modern consoles. Additionally, the LED indicator works great with the Brook PS3/PS4/Switch Wireless Fight Board, showing both power and wireless bluetooth connectivity. Installation is simple using the double-sided tape included with the PCB and attaching to the side panel.
We now offer optional 3mm laser cut holes positioned for the BNB's front panel. While available for all panels, it is best used with Black Gloss, Black Matte, White Gloss and White Matte kit and side panels. Clear panels won't necessarily require these cuts.
