Please note that BNB Gen 2 panels are not compatible with Gen 1. The top and supporting panels of Gen 2 have a smooth corner, which differs from the sharper corners of the previous generation. Additionally the supporting panel and side panels contains a second tab, which is incompatible with Gen 1.
We will continue to support replacement panels, sides, and artwork services for BNB Fightstick Gen 1 models.
Screwbuttons are highly recommended for BNB Fightstick. Snapbuttons may not properly fit due to plexi material thickness.

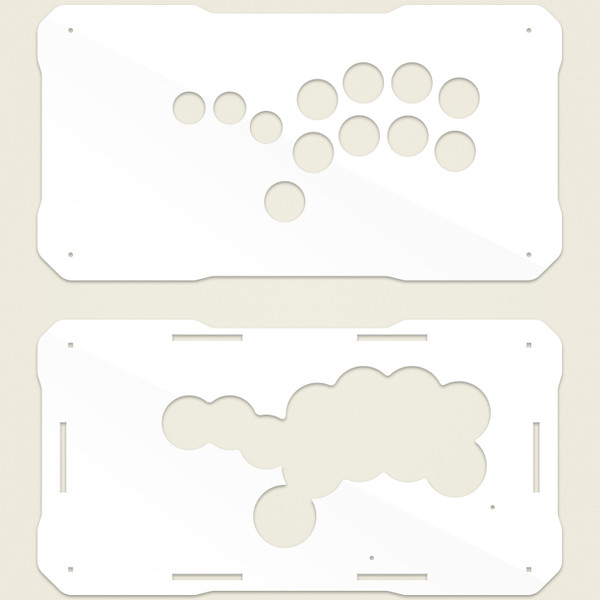

The top two panels of the BNB Gloss Plexi Fightstick consist of the control panel and supporting panel. The control panel provides installation for pushbuttons. The supporting panel contains the joystick mount (as applicable to the layout) and mount for PCB. It also contains an open space for the pushbuttons, shaped to the button configuration. Both are .177" (4.49mm) thick, and possess contour screw holes for use with a set of 8 Bbolts for BNB Fightsticks - Black or Silver, and Set of 2 Bolts and Nuts for BNB Fightsticks PCB Mount.
Gloss Texture on One Side
The all white BnB is designed for those who love the often sleek presentation of an all white Fightstick, or white with highlights of color that can make it stand out. Gloss is reflective and sleek, though important to note that gloss is more difficult to keep clean or free of some fingerprints. Matte has little to no reflection, and is smudge and fingerprint-resistant. Please refer to the photos below for comparison between gloss and matte texture.
Please note that the opposite side of this plexi will have a white matte.
Pre-Wrapped in Paper or Film Backing
The panels are cut from acrylic sheets with protective brown paper or blue plastic film. You may see scratches or wear on the paper or film as the sheets are cut and transported from the acrylic manufacturer to us, and should not appear on the plexiglass once removed. To remove the film, use a fingernail on any available corner and proceed to pull away at the backing. The paper or film does not have adhesive and should not leave residue on the plexiglass.
BNB Assembled Dimensions
Here are the Width x Length x Height dimensions of an assembled BNB Fightstick:
|Side Panel Height
