OTTO DIY V2 Korean Style Kit for Sanwa JLF and Hori Hayabusa

×
Price:
$31.95 (USD)
SKU
OTTO-DIY-V2
Weight
2.60 Ounces
Availability
Ships within 1-2 business days
Shipping
Calculated at checkout
Max Qty
4 unit(s)

Why is there a quantity limit? Learn more. new-window-icon.png




Quantity:
Description
Reviews
Videos
Warranty
Other Details
  • Product Description

    The Sanwa JLF-TP-8YT Joystick is long considered the FGC standard among joystick levers, and has enjoyed its lions share of performance mods and accessories over the years. OTTO DIY introduces a comprehensive kit whose goal is to enhance control through its use of unique materials and modular pieces that replace the existing parts of your JLF-TP, TP-SK or Hori Hayabusa Joystick.

    V2 Korean Style with Rubber Tension Grommet

    Additional Purchase: OTTO DIY V2 Grommet Kit

    Korean levers utilize a silicone rubber or natural rubber tension grommet in place of a spring. Secured via a bobbin, it lends to a unique feel that plays well for games like Tekken. You will receive two tensions - 40 Shore A and 60 Shore A - with the kit.  You can also option bundle the OTTO DIY V2 Korean Style Silicon Insert Kit with the V2 and save $1.00.

    Made of PTFE (Teflon®). Hayabusa Compatibility

    OTTO DIY made each major plastic component of the kit out of Polytetrafluoroethylene, or PTFE. It is commonly known as Teflon®. Not only does this material give the kit components their unique color, but significantly reduces friction on components that must interact with each other.  For example, the pivot and pivot core of the OTTO DIY kit will hardly need greasing, producing nearly fluid directional control.

    Thanks to its JLF component and build similarities, the Hori Hayabusa Joystick is also compatible with the kit.  This gives the Hayabusa a number of enhancements previously unavailable to it.

    What's Included in the V2 Kit?

    • Modular Body - The OTTO DIY modular body replaces the existing body found on the Sanwa JLF TP series joystick lever, and used for both the V2 (Korean style) and V5 (JLF Upgrade) kits.  It houses the core attachment, plus the original TPMA microswitch PCB or Hori microswitch PCB.
    • Screw and Nut Set - gold plated screws replace the existing screws used to mount the Sanwa P-1 plate or Hayabusa plate.  To install the screws, you will need a 2mm hex key.
    • Tension Grommets and Bobbin - These two elements represent the unique aspect of Korean levers, which use a silicone rubber tension grommet in place of a spring. You will receive two tensions - 40 Shore A and 60 Shore A - with the kit. You can also purchase additional tension grommets with the kit.
    • Grommet Core and cap - The grommet core is made of a smooth teflon material and connects to the modular body.  The cap sits atop the core, grommet and bobbin, helping to keep everything together.
    • 12mm, 12.5mm, 13mm Actuators - the actuator is used to activate each microswitch plunger, with the 12.5mm and 13mm actuator designed to shorten the distance between the actuator and the plunger and speed up actuation.
    • OTTO Stability Spring - while the V2 kit uses a rubber tension, the additional spring adds some balance for a joystick lever that normally relies on a spring.
    • FD Replacement Square Gate - This replacement square gate has a rounded area around the corners, allowing the top portion of actuator to sit comfortably while still defining its corner.
    • BYD Rounded Gate - Those desiring an octagonal gate may consider this a worthwhile alternative. The gate increases the rounded edges around the corners, producing a more circular feel during play.

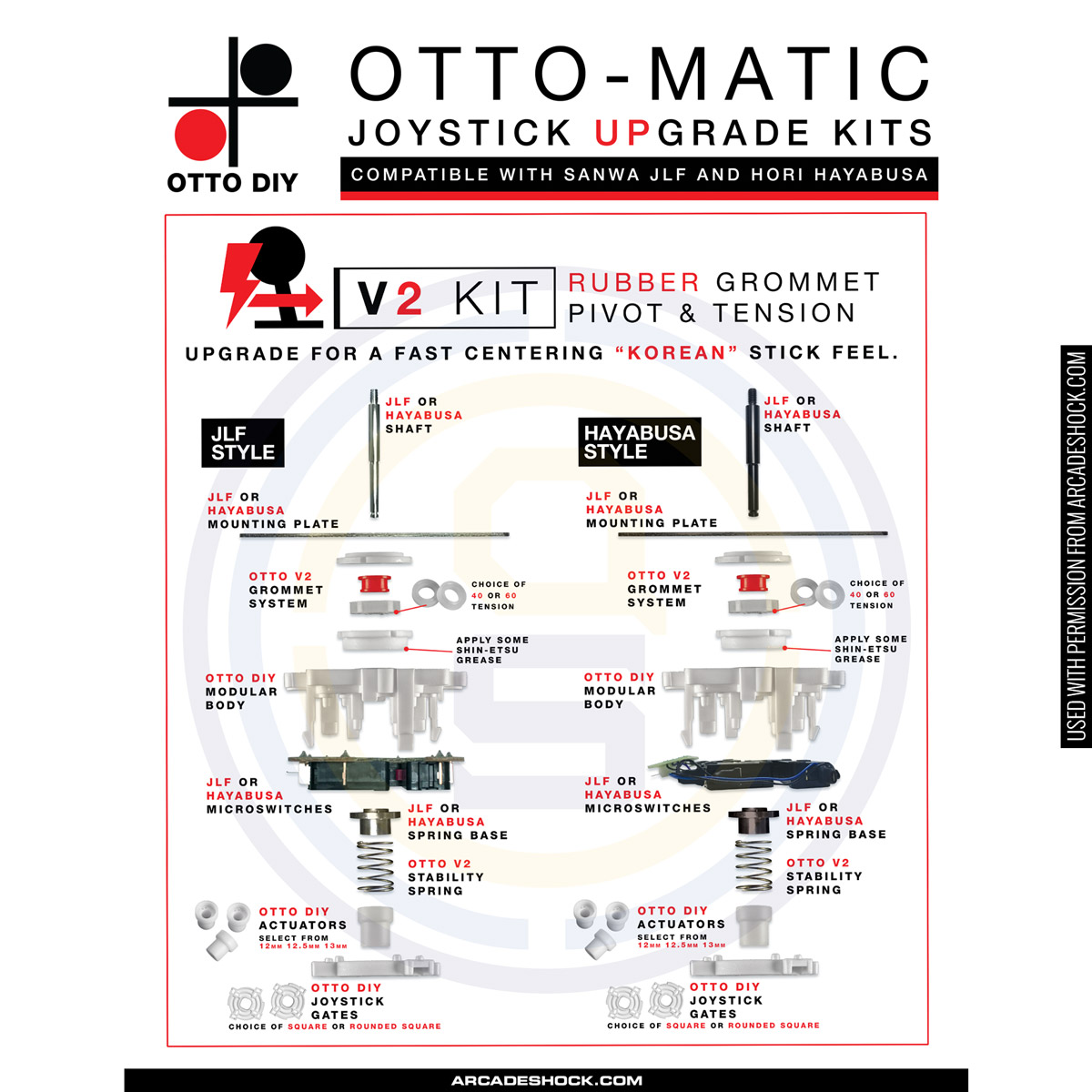

    OTTO DIY V2 Kit Information Poster

    Assembly Instructions

    Click the "video" tab in the product description - or scroll further if you are on mobile - to view a helpful video guide that shows the parts needed and assembled in order.

  • Product Reviews

    ×

    This product hasn't received any reviews yet. Be the first to review this product!

    Write A Review

  • Product Videos

    • Otto DIY JLF V2 and V5 Joystick Lever Mod Install
      In this latest Tech Corner episode, Joe shows you how to insta...

    Otto DIY JLF V2 and V5 Joystick Lever Mod Install

    In this latest Tech Corner episode, Joe shows you how to install the various components of the popular OTTO DIY V2 (Korean Style) and V5 (Upgrade) into the ubiquitous Sanwa JLF-TP-8YT joystick lever and Hori Hayabusa lever. You can pick up the V5 JLF Upgrade Kit here: https://focusattack.com/otto-diy-v5-upgrade-kit-for-sanwa-jlf-and-hori-hayabusa/ or V2 Korean Style Kit here: https://focusattack.com/otto-diy-v2-korean-style-kit-for-sanwa-jlf-and-hori-hayabusa/
