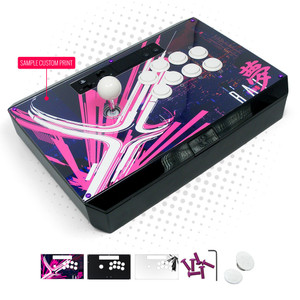

Razer Panthera Noir Custom Art/Plexi Bundle

You have several options to personalize your control panel, such as button layout, removal of control panel or screws in some models, button label etching, and text etching.

REMOVING DEFAULT ELEMENTS | CUT BUTTON INSERTS | CONSOLE BUTTON LABELS | ETCHED TEXT | ETCH TEXT FONTS | PARTIAL & FULL ETCH | ADDITIONAL INSTRUCTIONS

Layout Configuration

Each Fightstick has its own characteristics, with some sharing similar elements, such as the popular Vewlix button layout. We will specify what options are available for each Fightstick. Below are the most common button layout configurations:

8 Button Vewlix

First 6 Buttons

Last 6 Buttons

7 Button Vewlix

- Back to topic top

Cut Button Inserts

Pushbutton manufacturers such as Sanwa, Seimitsu, Crown and GamerFinger have each produced specific models with a clear or translucent plastic cap and flat plunger.  These are often used to display a graphical insert, allowing you to enhance the button's appearance.  That said, each button manufacturer has designed the artwork cap with a different diameter than their competitors. For example, GamerFinger's artwork cap has a diameter that is slightly larger than Seimitsu or Sanwa.  An insert cut for a Sanwa artwork cap will fit loosely when inserted into the GamerFinger artwork cap.  This is an undesirable result that can produce a white or colored ring around the insert.

Now, you can choose the button insert cut to match the pushbutton you intend to use.  This allows the insert to fit snugly within the cap.

Brands and Model with Artwork Caps

• Sanwa - OBSC (30mm) | OBSC (24mm)
• Seimitsu - PS-14-GN-C (30mm) | PS-14-DN-C (24mm) | PS-14-K (30mm) | PS-14-KN (30mm) | PS-14-DN-K (24mm)
• Crown - SDB-201-C, SDB-202 MX (30mm) | SDB-202-MX (24mm)
• GamerFinger - HBFS30 (30mm) | HBFS24 (24mm)

In some instances, a button brand or model does not have a 24mm equivalent with art cap.  In this case, we will cut to the default size of Sanwa 24mm insert.

Please note that if you later intend to purchase a different button, you may need to get new button inserts or new artwork. If you are uncertain which button you may choose, Sanwa is chosen by default.

24 vs 30mm

When processing orders, a frequent mistake we found among new players is choosing the wrong size for action buttons, such as punch and kick.

Within the fighting game genre, Japanese arcade buttons commonly consist of two diameter sizes: 24 millimeter and 30 milllimeter (mm). In most configurations, 30mm represents your action button.  These are front facing, appearing most prominent on your Fightstick control panel.  Option button, such as "Start", "Select", or more recently "Option", "Touch", or "Share" are usually 24mm.

UPDATE: Owners of Neo Geo AES Joysticks will need 24mm pushbuttons instead of 30mm (Thanks SRK's DEZALB)

Below is a visual representation of a common Fightstick control panel.  Throughout this article, we will mark 24mm in green, and 30mm in Orange.

Checking the Proper Size

Another way that players can misinterpret the pushbutton size is by measuring the pushbutton plunger.  Have a look at the diagram at right.

The plunger - the part that you press down to represent an input - is 25mm or a bit smaller in most 30mm pushbuttons.  Often this leads to the conclusion that one needs a 24mm button and not 30mm.

Similarly measuring the button rim can lead to confusion, as it is intentionally larger than the button hole it is placed in.  You don't want to use these measurements.  Instead, review the button housing diameter, or the hole the button will be placed in.  You can do this with a caliper - a digital caliper is often quite helpful for this and other arcade-related projects.

Control Panel Configuration

Most Fightsticks from MadCatz, Hori, Qanba, and similar will use these two sizes.  How the buttons are used will depend on the model joystick that you own. Over time, we'll provide example configurations for specific popular Fightstick models and arcade cabinets using the color key for 24mm (green) and 30mm (orange).  We'll also expand the key for future models if another size is introduced, and we offer for sale.

Console Button Labels

Depending on the plexi material you choose, you can have your preferred console button designation etched onto it. This is helpful if you swap art often, and do not want to place the labeling onto the artwork.

Below are the most common console labels. Other button labels may apply specifically to the Fightstick model, such as Dreamcast console for the Agetec HKT-7300

Sony PS3/PS4

Xbox 360/Xbox One

Hybrid (PS3/PS4, Xbox 360/Xbox One)

- Back to topic top

Etched Text

For those looking to personalize their plexiglass control panel with their name or handle, but not as familiar with graphic design applications like Photoshop, you can add text etchings.  Choose from a variety of fonts, and your position on the control panel.

Text Position

You can place text in one of up to four positions on your control panel. How many positions are available will vary depending on the model of control panel you choose. Of the positions are the following:

Under Turbo/CP (24pt)

Upper Right Corner (36pt)

Lower Left Corner (36pt)

Lower Right Corner (36pt)

- Back to topic top

Etch Text Fonts

You can choose from a variety of fonts across seven distinct themes:

COMIC | GRUNGE | HANDWRITTEN | POP CULTURE | CLASSIC/RETRO | SANS | SERIF

Comic

Back to fonts | Back to topic top

Grunge

Back to fonts | Back to topic top

HANDWRITTEN

Back to fonts | Back to topic top

Pop Culture

Back to fonts | Back to topic top

Classic/Retro

Back to fonts | Back to topic top

Sans

Back to fonts | Back to topic top

Serif

Back to fonts | Back to topic top

Partial and Full Etch

Etching on plexi provides you an extra layer for personalizing your control panel.  Artwork is etched onto the bottom of clear plexi, or on top of opaque or translucent color plexi.  You have two options to choose.

Partial Etch (Sample Illustration)

Full Etch (Sample Illustration)

Partial Etch

A partial etch is a graphic up to 5 inches square, placed nearly anywhere on the control panel face.  You can etch a logo, name/handle, or illustration.  Please note that this is not the same as etched text; you will submit the graphic to us for etching.

To place an order for a partial etch, select the "Partial (5"x5")" option next to the "Full or Partial Etching" label.  We must know where to place your etch graphic on the panel, so be sure to provide placement instructions within the "Additional Instructions" text form, or submit the graphic using our Photoshop template.  If we don't have this, we will put the task on hold, and send a message asking for clarification on where you want the graphic to appear on the panel.

Full Etch

A full etch can occupy the entire area of the control panel.  It can consist of a single illustration, or multiple illustrations placed strategically on the control panel.  To submit your graphic, please use our Photoshop template and click "Choose file" next to "Submit Etch Artwork".

Please note: On some models, a full etch graphic is not available, as the plexi used for that model is thinner than .060" and thus can warp under the heat that is generated from a laser etching machine.

Etch Graphic Resolution

It is recommended that the graphic submitted is high-resolution - between 300dpi or 600dpi (dots per inch).  Anything less may etch with less fidelity.  Click for more information about submitting etch artwork.

- Back to topic top

Additional Instructions

If you would like to clarify something regarding your personalization that wasn't covered in the options, you can complete the "Additional Instructions" form.  Please do not make requests for customization outside of the requirements of the plexi, such as fixing your graphic, or creating a logo, as any orders placed in "HOLD" status is pushed to the bottom of the queue until it is changed back to "IN PROGRESS".

- Back to topic top

If you would like to use a free, online Photoshop-like app to check out whether your artwork will work with a layout we offer, I highly recommend Photopea  This amazing app works with our PSD templates and is a great way to preview your artwork or create new art files. It also exports to PSD, which is the format we recommend for submitting artwork.

Visit Photopea
