Please Read Before You Buy
Project L Official Fightstick Artwork (updated 8/10/2023)
Please do not submit the PNG versions of the Project L Fightstick artwork . These are only examples to show how artwork can look in our templates. Instead, please download the zipped Photoshop PSD version unzip the file and integrate them into our artwork templates for your desired fightstick model. If you are unsure about how to create and submit artwork for printing, please review this helpful guide .
Hori Alpha Official Street Fighter 6 Artwork (updated 8/10/2023)
The official Hori Street Fighter Artwork for Alpha Fightstick has the layout merged to the artwork, making it impossible to print and cut properly. Please DO NOT use this service for these prints, or they will be put on HOLD status or cancelled and refunded.
If you wish to have the artwork printed only, you can use our Non-Commercial Fightstick Panel Artwork Print service.
Custom orders do not ship separately
If you place an order for a personalized product along with non-custom products, such as arcade part or merchandise, please note that all products will ship together. We ask for a minimum of 7-10 business daysnbsp;to process custom orders and prepare for shipping, as we often have a large queue, and personalized orders require additional processing work. If you desire to receive your non-custom products earlier, then please place two separate orders. This will allow the non-custom orders to ship within our normal 1-2 business days.>

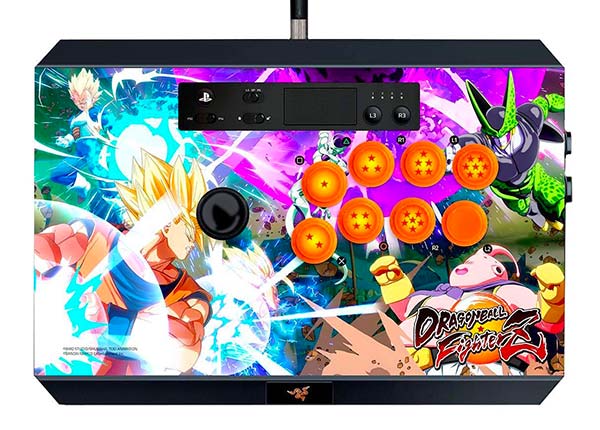

The art cover replacement top panel offers one of the best ways to customize your joystick. The plexiglass sits atop specially cut artwork, allowing you to add or replace new custom artwork to match your joystick theme.
Sized for Razer Panthera (2017 Model). Different Plexi Thicknesses, M4x12mm TE Plexiglass Hex Screws for MadCatz TE Optional
The artwork is designed to fit the Razer Panthera for Playstation® 4/3. This will not fit the new Razer Panthera EVO (2018 model), nor Razer Atrox for Xbox One or Xbox 360. Blank plexi, custom etch plexi and artwork for this Atrox are available. Please note that the plexi - at .060" - is not the same thickness as the original model of .080", but will closely line up with the Panthera's control panel lip as artwork is added.
With the original panel removed, you can use the original panel screws that are provided underneath the plexi. See Install notes for additional information. Additionally, you can highlight your panel with a choice of M4x12mm TE Plexiglass screws in multiple colors. The screws require a 2.5mm hex key.
Some important notes while installing:
|Open the Panthera by pressing the button with logo on the Fightstick's front panel. The top panel will disconnect from the bottom and swing upwards. Take note of the wiring, as you will need to remove the buttons. Thankfully, a wiring guide is located under the top panel (pictured).
||With needle-nose pliers, remove each wire from the button by pinching on the disconnect. You can press onto a small tab on each disconnect to easily remove it from the button microswitch terminals.
|The Panthera control panel is glued down to the metal panel underneath with a strong adhesive. Use a heat gun or hair dryer to gradually weaken the bond. Focus on one area first in order to create a small a gap, enough to position a flathead screwdriver or other wedge between the plexi and metal.
|| With a screwdriver, continue to heat the acrylic and loosen the adhesive while prying away the acrylic panel top from metal panel below. Note that you may have scratches on the panel as a result - this is normal and will not affect installation of the new artwork.
|Some of the adhesive is pretty stubborn. You can use liquid adhesive remover solutions such as Goo-Gone, or continue to heat the adhesive on the panel to weaken further and peel away the glue. Let the Goo-Gone set in for 15-20 minutes or longer to loosen the adhesive bond to the panel.
|| On the top four corners of the underlying metal panel you will find a conical Phillips screw. These screws are no longer needed since the replacement panel does not use them.
|This photo illustrates which screws to remove. You will use hex screws (choice of color hex screws are offered with purchase of plexi) as a replacement.
Durable Configuration. Laser Cut Layout
The Panthera top panel is constructed using resilient clear acrylic, and layout is cut to precision with a laser etching device.
| Options |
You have several options to personalize your control panel, such as button layout, removal of control panel or screws in some models, button label etching, and text etching.
Each Fightstick has its own characteristics, with some sharing similar elements, such as the popular Vewlix button layout. We will specify what options are available for each Fightstick. Below are the most common button layout configurations:
8 Button Vewlix
First 6 Buttons
Last 6 Buttons
7 Button Vewlix
- Back to topic top
Removing Default Elements
Some Fightsticks, such as the popular MadCatz TE, offer additional personalization options by removing default elements such as control panel, start button, or screws. Cut options are defaulted to their authentic counterpart, displayed as [YES (default)] in the options list. For example, a MadCatz TE, the default configuration is to have the turbo/guide portion of the control panel cut, so that the control panel can fit properly. You have the option to select [NO] to prevent cutting these areas.
Cut Control Panel? [NO]
Cut Start Button? [NO]
Cut Middle and/or Bottom Screws? [NO]
Cut Control Panel? [NO] - If you own a MadCatz TE, and installed a PS360+, you may no longer need the Turbo/Guide area of the control panel, located at top left. This option allows you to remove the Turbo/Guide portion. Please note that you MUST remove the actual control panel on the TE by unscrewing it before applying the plexi, or you risk damaging the plexi. Also, please make certain to select this option if you are also choosing to have artwork printed, or the plexi and artwork won't match.
Cut Start Button? [NO] - On some joysticks - such as the Qanba Q4 - the start button is directly on the panel. You can select to have this removed. You can also select this should you desire a panel similar to the Eightarc Fusion or Synthesis series Fightstick, as the start button is moved elsewhere. Again, this option is available on specific joysticks.
Cut Middle and/or Bottom Screws? [NO] - Selecting "no" on this option allows you to remove the middle top and bottom screw holes on specific joysticks, either for a cleaner appearance or to avoid rubbing your wrist against the screw. Please reconsider this option if you intend to have a full panel etch on your plexi, as etching physically changes portions of the plexi due to heat. In this case, it is best to leave the screw holes in place in order to keep the panel securely positioned.
- Back to topic top
If you would like to use a free, online Photoshop-like app to check out whether your artwork will work with a layout we offer, I highly recommend Photopea This amazing app works with our PSD templates and is a great way to preview your artwork or create new art files. It also exports to PSD, which is the format we recommend for submitting artwork.
New to FA Plexworks?
Click the "Options" tab for a detailed explanation of each customization option available to you. Using a mobile device? Click here to scroll to the descriptions.
We offer a photoshop template for each custom artwork or custom plexi etch. Click the "Description" tab (or scroll up if on mobile device) to display the template and download. You can also click here to access our repository and download artwork and etch templates (in Photoshop PSD format) for your desired model and others.
Important: Using templates outside of the ones we provide may produce unwanted output. We are not responsible for output generated from unsupported templates. More information here.
Warranty and Support for FA Plexworks Custom Order
Custom orders cannot be returned for refund, or exchanged for another custom order. Orders damaged upon arrival are subject to special terms within our return policy. Please see our FA Plexworks FAQ for more information about our Plexworks return policy and related Q&A.
If you have not used our Plexworks custom services before, we recommend that you visit our support section for updated information, helpful tips, and resources to get the best output.
Some useful sections to review before making your purchase (will open in new browser window or tab):
