.96 Inch Active Area OLED Screen Kit for Brook Gen 5/5X/W and GP2040-CE

Harness may not be compatible with some unlisted PCBs

Please note that the harness provided in this kit is designed to address the order of the 4 input pins on the Fightstick PCB and OLED, which may have their SDA and SCL pins switched. Other PCBs not listed for compatibility may have their pins in the correct order and thus will require a different harness.

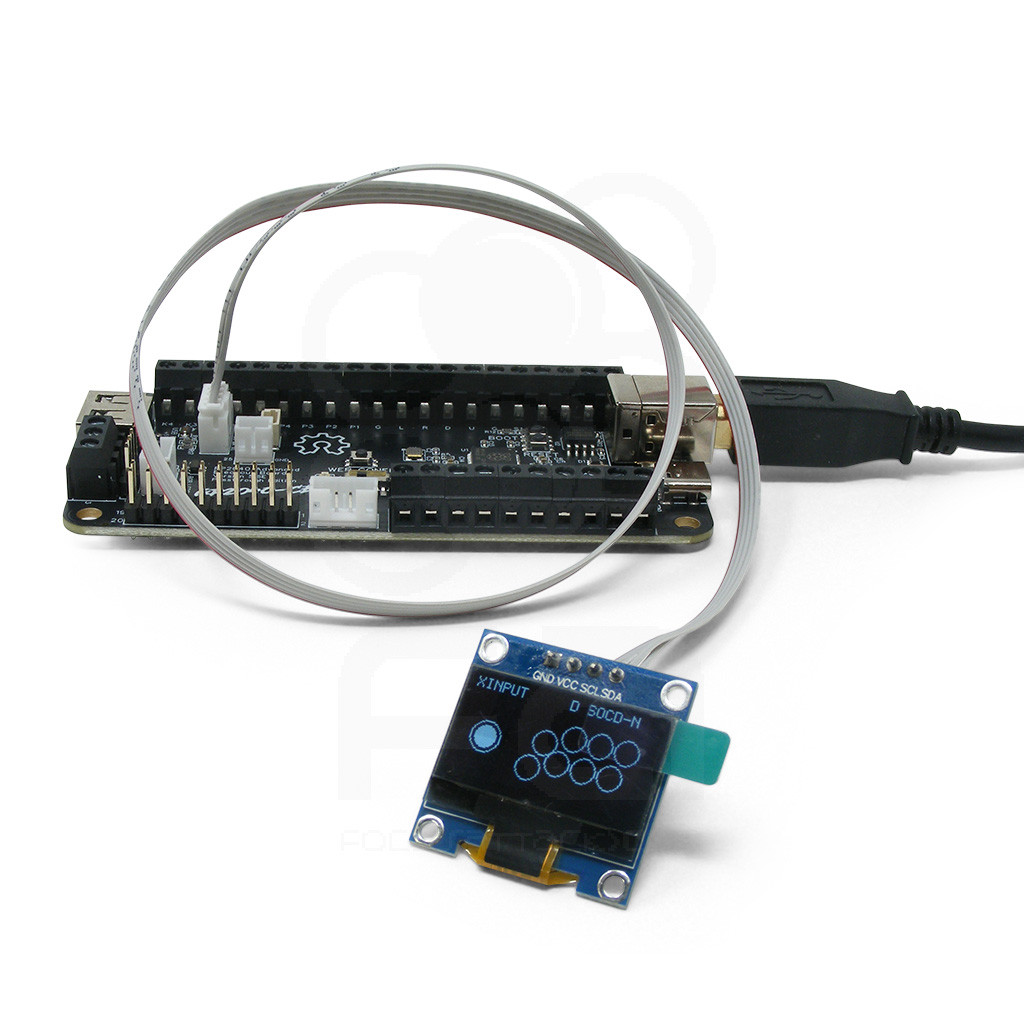

The .96 INCH Active Area OLED Screen Kit for Brook Gen 5/5X/W and GP2040-CE is designed those building DIY Fightsticks and would appreciate the Always-Active Input display functionality offered by modern fighting game PCBs.

Deep Black. Bright White Text and Icon Readability. Sharp Presentation

For those familiar with OLED, you may know that this display format offers rich black and bright color, given that the display only lights up where it's needed, as opposed to LED which requires light behind it. With this technology, you'll receive a sharp white output to see information such as:

• Stick setting
• Tournament Mode
• SOCD Setting
• Button Input or Layout
• Console Mode
• Splash screen

This list of visuals will depend on the features of your chosen PCB.

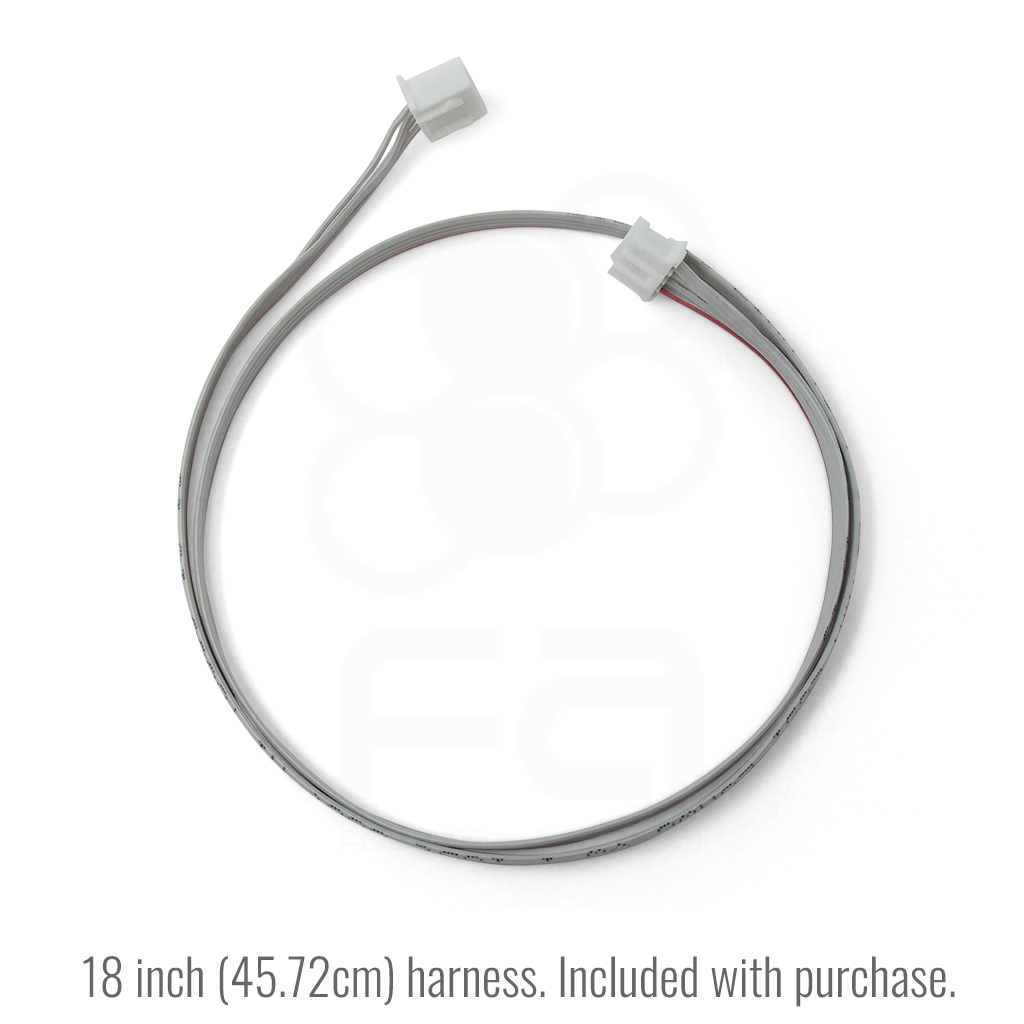

18 Inch Harness Included

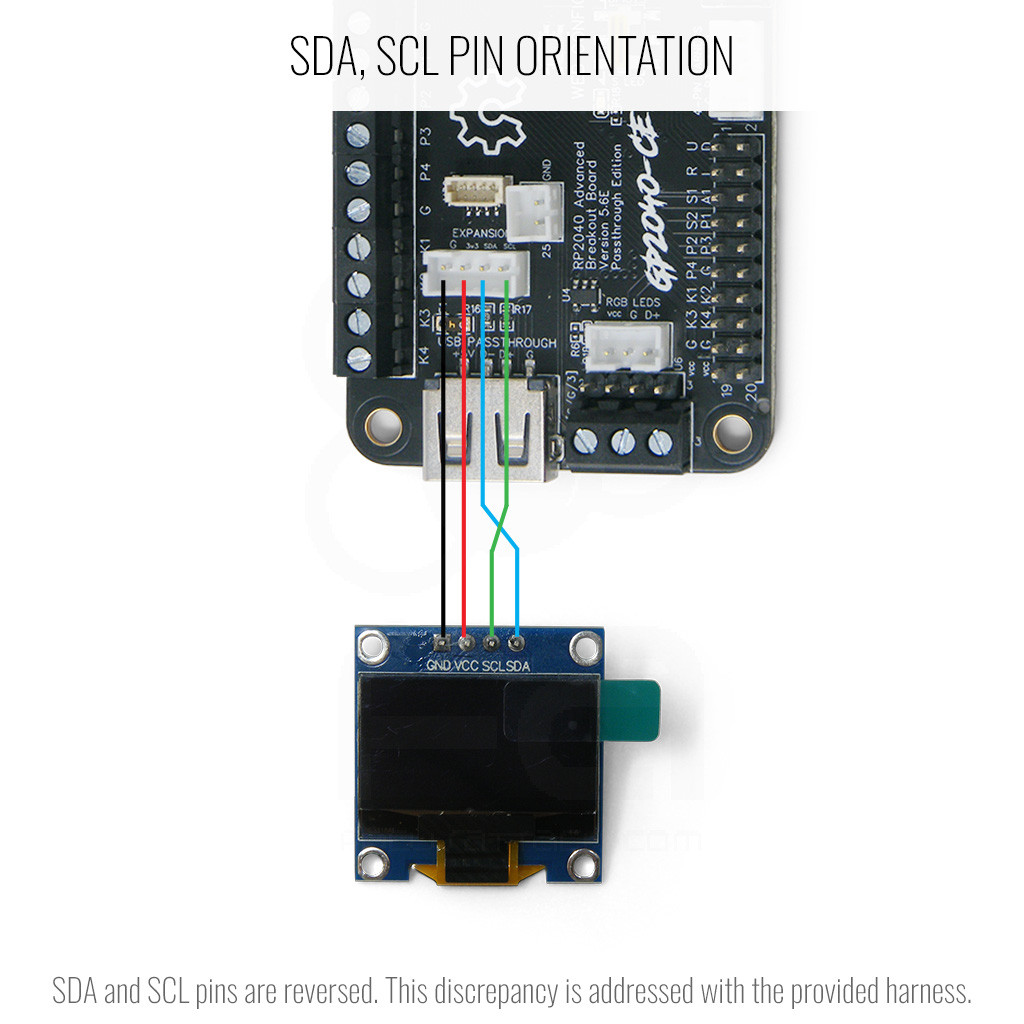

The 18 inch (45.72cm) harness allows you to place the PCB further away from the OLED if necessary. It is also designed to address the PCB to OLED pinout differences with the SDA data and SCl clock pins. Those wires are swapped to accomodate the pinouts on each device.

18-inch harness comes with kit	Harness swaps SDA and SCL pinout for compatibility

Specs, Dimensions and Compatibility

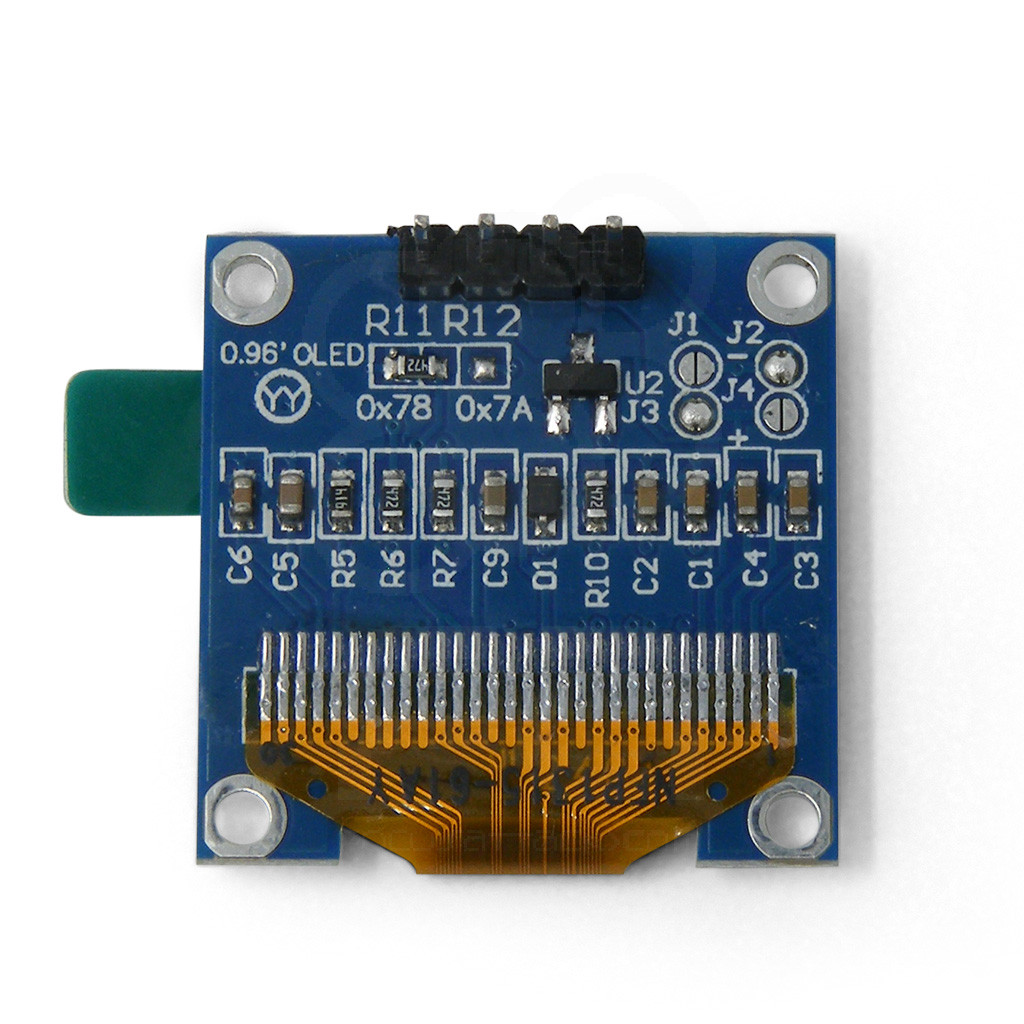

 Below are specifications of the OLED screen.

• Resolution: 128 x 64, View angle: > 160°, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W
• Embedded Driver IC: SSD1306. Communication: I2C/IIC Interface.

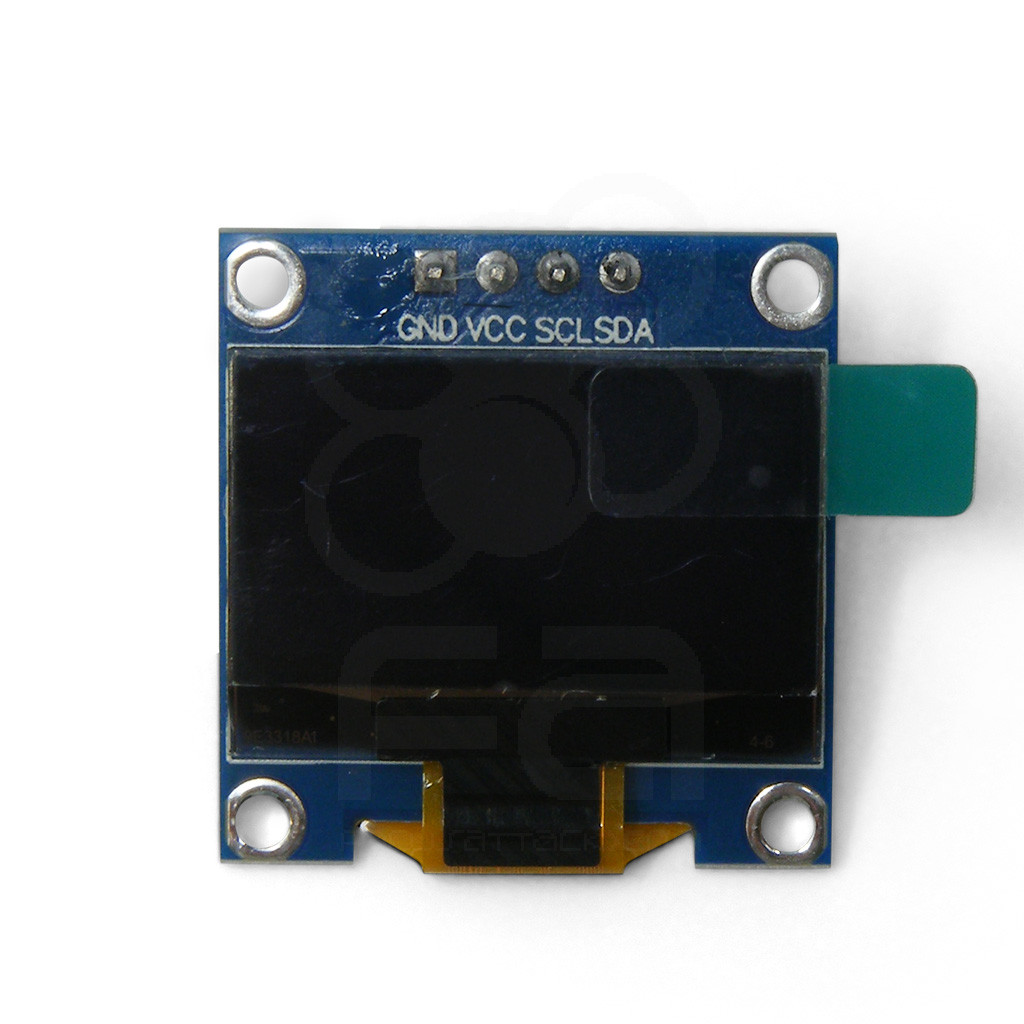

• 4-Pin Male Connector
• Ground (GND)
• Power (VCC, 3.3v~5v)
• Data line (SDA)
• Clock Line (SCL)

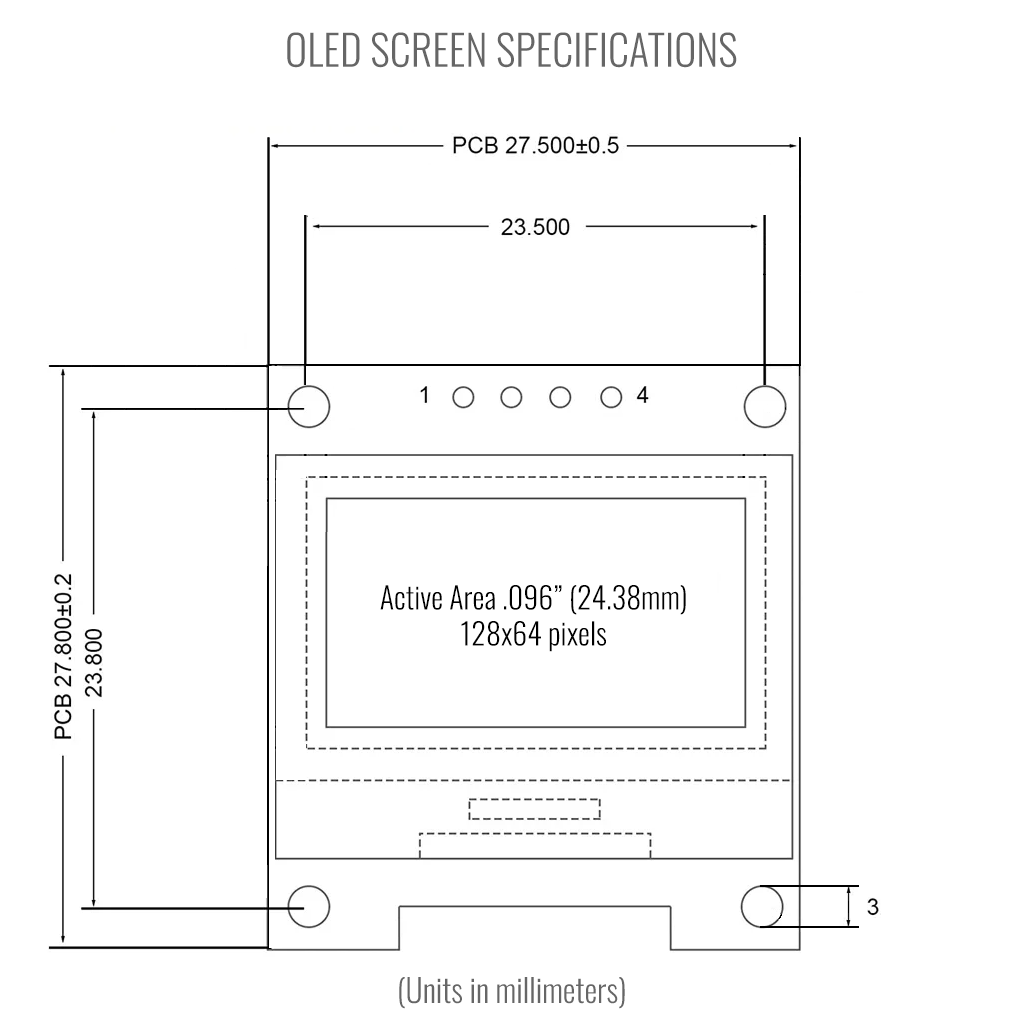

Dimensions

Fighting Board PCB Compatibility

Note that more PCBs may be compatible, but were not yet tested with the device. This will depend on the pinout of the SCL and SDA as the provided harness has these pins swapped to pin 3 and 4 respectively.

• GP2040-CE (V5.6E - USB-B, USB-C) Open Source Multi-Console Fight Board
• Brook Gen-5 Native PS4/PS5/Switch/Switch 2 + PC Fighting Board
• Brook Gen 5X PS5/XBox One/Switch/Switch 2 + PC Fighting Board
• Brook Gen 5 Wireless Fighting Board

Brook Connection Guide

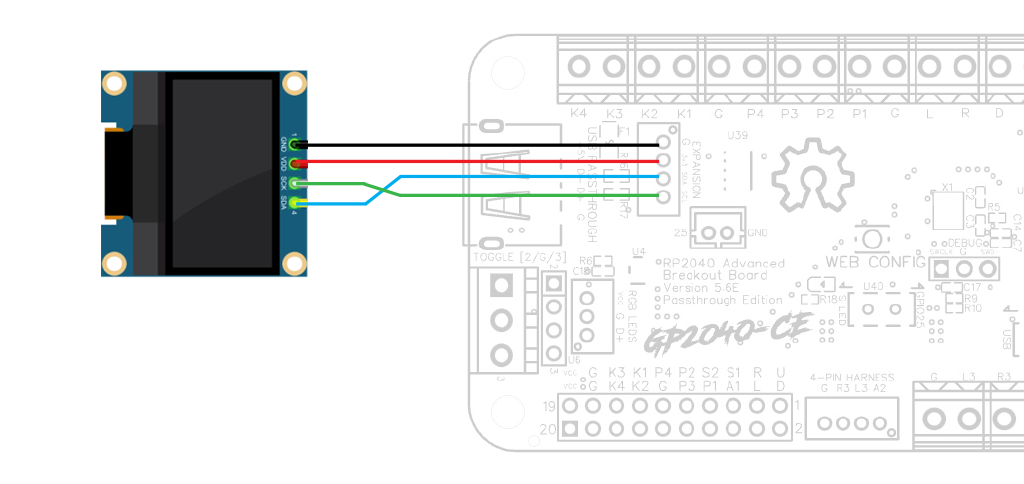

GP-2040 CE Connection Guide

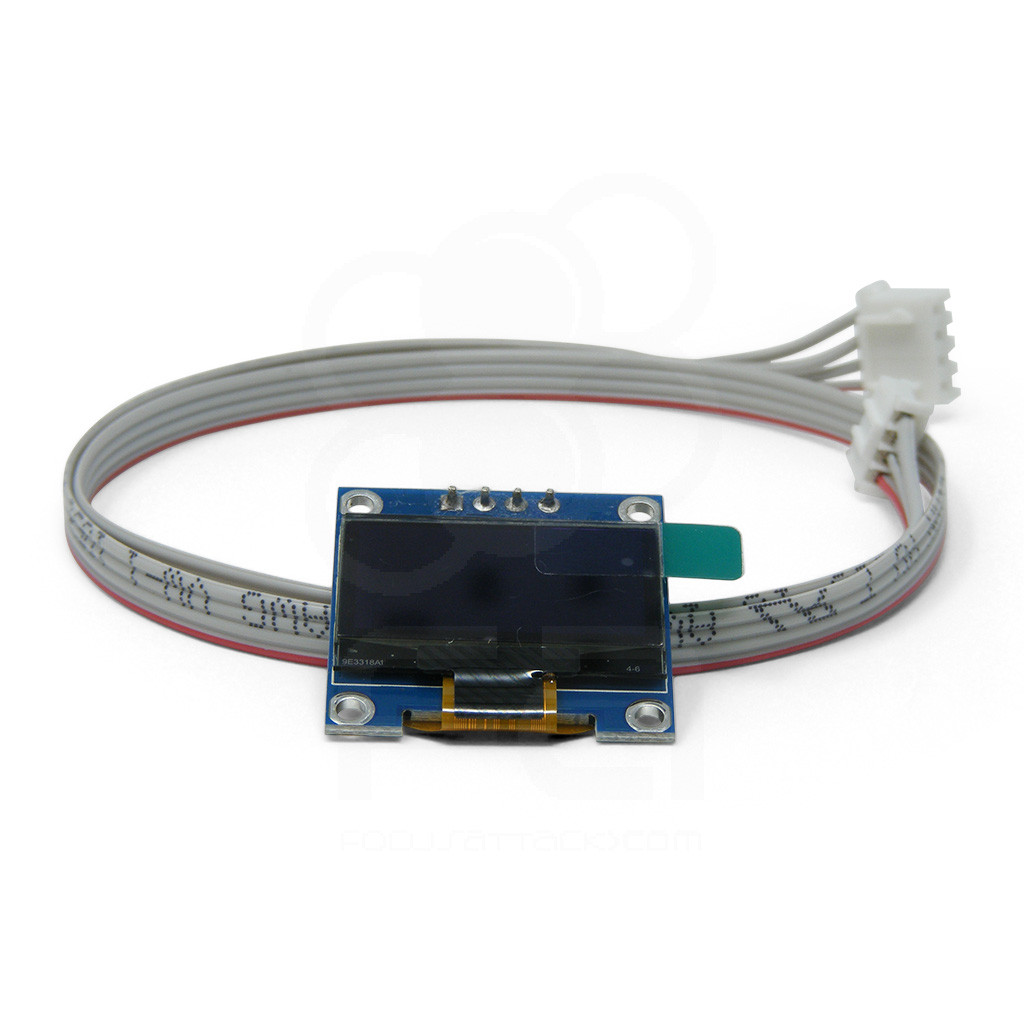

What's Included?

• OLED Screen
• Custom 18 inch 4-pin cable with SDA and SDL wire swap
• Set of four (4) 1/2 inch tall screws and nuts
