Artwork Print and Cut for PDP Injustice Battle Edition

×
Price:
$14.95 (USD)
SKU
CUSTOM-INJUSTICE-ART-TOP
Weight
3.00 Ounces
Availability
Please allow up to 7-10 business days to process custom orders. Order will appear in Custom Job Tracker.
Shipping
Calculated at checkout
Only supports a few types. Maximum file size: 244 MB
Quantity:
Description
Reviews
Videos
Warranty
Other Details

  • Product Description

    Please Read Before You Order

    Below is important information to know before placing a custom order with us:

    • Project L Official Artwork: Do not submit the PNG samples. Instead, please download the zipped Photoshop PSD version, unzip the file and integrate them into our artwork templates new-window-icon.png for your desired fightstick model
    • Hori Official Street Fighter 6 Artwork:  Please do not submit this artwork for the Fightstick Alpha. It is not compatible with our print and cut, as it contains registration marks that cannot be removed. If you wish to have the artwork printed only, you can use our Non-Commercial Fightstick Panel Artwork Print service.
    • Hori Official Tekken 8 Artwork. We can print and cut most of Hori's official Tekken 8 artwork, as they revised the artwork files to allow removing the registration marks. Exception is artwork for Jun Kazama which has registration marks that cannot be removed.
    • Custom Orders do Not Ship Separately: If you place an order for a personalized product along with non-custom products, such as arcade part or merchandise, please note that all items will ship together.

    Control panel artwork represents one of the most convenient means to personalize your fightstick, giving it a new look almost immediately.

    High Resolution, Color Fidelity

    Artwork prints are developed using a top-of-the-line commercial printer, offering vivid, professional-quality artwork replication. The printer is capable of resolution of 1200dpi (dots per inch), and 8 color ink system (Cyan, Magenta, Yellow, K(Black) + Light Cyan, Light Magenta and White) reproduces artwork over a wide color range.

    Artwork is printed on 10 mil cardstock sheet. It carries 95% brightness and tensile strength of 100 pounds per inch.

    Each print is laser cut to your specifications, as presented by available options. You will receive the print with perforated button inserts designed to fit your chosen button brand. In some cases, such as the Mayflash series, the control panel elements may also have perforated cuts. Gently press downward to remove the cutouts.

    Important Notes about Color Fidelity, Brightness

    • Please do not change the RGB color space of our templates to CYMK when submitting your artwork. Our templates are intentionally designed in the RGB color space to best match most customer's screen expectations, and will typically convert CYMK to RGB when printing. We will not honor demands to reprint artwork whose template is changed to CYMK color space.
    • Unless properly calibrated to your printer and viewing environment, your monitor does not accurately represent the brightness of paper. Artwork submissions may need adjustment to ensure prints are not too dark. Please read this helpful support article for more information

    New: Holographic Paper

    Animated holograph paper example

    Example animated photo displayed for illustrative purposes only. Pattern "Space Dots" shown.

    In addition to white cardstock sheets, we now offer holographic paper sheets in several captivating patterns. Holographic sheets are created from paper that is imprinted or embossed with a design or image and then covered in a thin, transparent film of metal. The finished sheet has a characteristic luster — a kind of rainbow iridescence — when the imprinted pattern is viewed from particular perspectives.

    Holographic cardstock has a similar tensile strength to our existing cardstock, about 110-115 pounds per inch

    Differences between White Cardstock and Holographic Print

    Both materials have their strengths. White cardstock is our tried and true paper material, producing vibrant colors with a textured semigloss.  It's 95% brightness brings out the best color fidelity because it has a white backing.

    Holographic paper has a striking metallic finish. By itself, its color changing properties are quite eye-catching. This is even more evident when a pattern is used. However, because the material does not have a white backing, the illustration's areas of white will instead show the metallic sheen. This can lead to a slightly duller appearance compared to cardstock. These comparison photos may help to illustrate. Please note that while the colors can appear more muted on holograph paper, the reflective nature of the material as well as its color properties will vary depending on the angle the illustration is seen and the material's pattern. Not every print will exactly resemble the below example.

    White cardstock example
    Holographic paper example
    White cardstock
    Holographic paper

    Holographic Patterns

    To review the list of current patterns we offer, please click the "Option Guide" Tab, then click "Holographic Patterns" link. On a mobile device? Scroll down to "Options Guide", then click "Holographic Patterns" link.

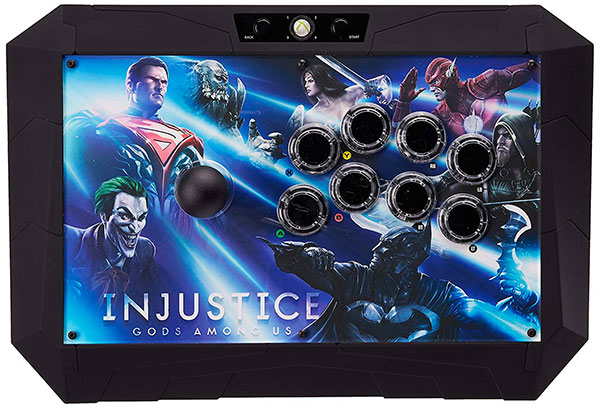

    Designed for PDP Injustice Gods Among Us Battle Edition FightStick

    PDP Injustice Battle Edition Panel Template (2mb zip)

    Installation Notes

    The PDP Injustice Battle Edition Fightstick does not have a metal panel underneath the original artwork. instead it uses a series of platforms to keep the artwork in place.

    PDP Injustice Battle Edition Artwork Install - Step 1 PDP Injustice Battle Edition Install - Part 2
    It is recommended that you start by removing the bottom panel first.  This allows you to dislodge the pushbuttons and joystick shaft and battop from the panel after removing the wiring underneath the buttons.  Start with the six screws that hold the bottom panel to the enclosure.  Please note the screw type when you are reinstalling the bottom panel. The bottom panel reveals a plastic scaffold.  This is used to house the joystick and button wiring. You will need to reposition this scaffold when reinstalling, making sure the wiring is in place.  For now, you can put it aside.
    Injustice Battle Edition Install - Part 3
    Inside of the Battle Edition is a series of wires that connect to the motherboard.  The wires consist of LED connectors and .110" terminal female connectors. Unfortunately none of the wires are color coded, however you will see that each button input has its own connector to the motherboard.  It is recommended that you label the wires with each button input using masking tape or similar and a marker.  This way, you can reinstall the wires to the correct button.  Note that the .110" male terminals on each button do not have a specific order in which they must attach to .110" terminal female connectors.  Either will act as a signal or ground. This applies to most replacement Japanese-style arcade buttons.
    Injustice Battle Edition - Part 4 Injustice Battle Edition: Extra

    With the joystick battop and buttons removed, you can now take off the front panel.  Locate and remove the six screws using a 2mm hex key (note that the MadCatz 3mm hex key, or our 2.5mm hex keys will not work). We do offer a 2mm hex key for separate purchase with the plexi. Alternatively, you may often find this size as part of a hex key set, or you can buy individually at Amazon.Opens in new tab/window

    Here, you can replace the plexi panel and/or install new artwork.  Once in place, replace the screws on the top panel, and either reinstall the existing buttons or replace with new ones.  Same goes for the battop.  Flip the base upside down to re-attach wiring to the buttons.  If you replaced the buttons, you will not need to reattach the LED connectors. You may initially have issues fitting the button wiring back into the scaffold, but it will fit properly.

    		 Worth noting: Is it possible to lift the top panel by removing the battop and the screws, exposing the wiring below. There, you could remove the wiring from the buttons, and proceed to update the plexi and artwork. However unless you have the button wiring properly marked, it is recommended that you start with the bottom panel.
