BNB Fightstick Gen 2 Clear Plexi Kit

$99.95 (USD)
23.00 Ounces
Ships within 1-2 business days
Calculated at checkout

Choose Your Options

Other Details
  • Product Description

    BNB Gen vs Gen 2

    Please note that BNB Gen 2 panels are not compatible with Gen 1. The top and supporting panels of Gen 2 have a smooth corner, which differs from the sharper corners of the previous generation.  Additionally the supporting panel and side panels contains a second tab, which is incompatible with Gen 1.  We will continue to support replacement panels, sides, and artwork services for BNB Fightstick Gen 1 models.

    Screwbuttons are highly recommended for BNB Fightstick. Snapbuttons may not properly fit due to plexi material thickness.

    Save 25% on Artwork when Bundled with BnB!

    Save 25% when you bundle!

    If you're ready to customize right away, you can save 25% on any printed artwork with your purchase of the BnB Fightstick case. To redeem, add a BnB Fightstick kit that contains a clear panel top or bottom to the cart, then visit the Customize category and add your custom artwork order to the shopping cart.  You will see the discount applied at checkout.

    Jonyfraze - a longtime and well-respected member of the Fighting game community - has offered his talents as a Fightstick graphic designer over many years. Those skills have ported well to designing Fightsticks. The BnB Fightstick is all-acrylic arcade stick that is easy to assemble, durable and true to Jonyfraze, holds incredible potential to personalize to your style.

    Generation 2: Made from Your Feedback

    The BNB has undergone three notable changes, thanks to feedback from fans and previous customers.

    Rounded corners, Jigsaw sides

    Rounded corners and smooth angles now soften the overall shape of the BnB, making it sleeker and sexier while avoiding the hard edges that may cause it to scratch other surfaces. Jigsaw sides increases their durability - they are no longer prone to accidentally cracking during installation or repeated installs.

    In addition, the joystick hole in the support panel has been sized larger for Korean low-profile collars, making it possible to install the Crown CWL-309MJ-KMS-ST35 Joystick and other low collar K-levers

    Open Canvas

    Edge to Edge Artwork

    From top to bottom, the BnB's all-acrylic design provides an almost literal window to any printed artwork.  The case allows your illustration to reach its very edges, as shown in the example above. In the instance of the all clear acrylic model, you can even stack two prints together at bottom, displaying one print on the outermost bottom panel, and another on the innermost panel. This immersive approach adds much variety over the simpler single-panel prints.

    Multiple Layouts Available

    Much like the AllFightSticks family of steel enclosures, you can swap the top panel layout without having to purchase a new enclosure.  You can choose the one of currently eight layouts that you desire for your kit.  Because the design is made of acrylic, it is possible to add more layouts over time.

    Vewlix All Button Shiokenstar Noir
    Vewlix All Button Shiokenstar Noir
    Korean Noir Sega 2P Extended fa-bnbv2-sega2pkorean.png WASD
    Korean Noir Sega 2P Extended Korean Sega 2P Extended  WASD

    Bit Bang Gaming Player LED Optional Front Panel Cut

    BBG player LED Display

    When attached to most Brook console controller PCBs, the Bit Bang Gaming Player LED (sold separately) gives DIY enthusiasts a visual indicator of which controller port their Fightstick occupies on most modern consoles. Additionally, the LED indicator works great with the Brook PS3/PS4/Switch Wireless Fight Board, showing both power and wireless bluetooth connectivity.  Installation is simple using the double-sided tape included with the PCB and attaching to the side panel.

    We now offer optional 3mm laser cut holes positioned for the BNB's front panel.  While available for all panels, it is best used with Black Gloss, Black Matte, White Gloss and White Matte kit and side panels. Clear panels won't necessarily require these cuts.

    Optional Side Panel Cut for BBG Player LED

    BNB Assembled Dimensions

    Here are the Width x Length x Height dimensions of an assembled BNB Fightstick:

    Side Panel Height Width Length Height
    1.5" 15" 7.875" 2.25"
    1.75" - - 2.50"
    2.0" - - 2.75"

    Effortless Build

    The BnB Fightstick is designed as approachable case for beginners. The panels are constructed of a thick .177" (4.49mm) acrylic sheet, laser cut to shape. Each of the pieces fit together easily using pre-cut spaces, plus a few screws and standoffs.  The joystick mount uses a simple set of bolts, washers and nuts to keep the lever in place.

    Included with purchase

    Free with purchase

    Free Instant Detailer Pack with Purchase

    Included with each purchase is the Brillianize Instant Detailer Pack For Plexiglass, perfect for any touchups either after installation or future maintenance.

    Flat Packed for Safe Shipping. Flat Rate Domestic shipping

    The BnB arrives to you flat packed in either paper or film mask, and with the bolts, standoffs, and more of the parts you need for assembly. The panels are secured in bubble wrap with the parts attached at the top of the full kit. The units are then placed into a large box centered with crushed paper around the top, edges and bottom. For assembly instructions, please click the "Videos" tab, or scroll to the "Videos" topic if viewing on a mobile device.

    BnB Fightsticks, along with any items purchased with it, can ship domestically via FedEx Ground for a flat rate of just $15.95! [More informationnew-window-icon.png


    BNB Parts Checklist

    When building your BNB the following lists can help you compile the parts needed for each layout and configuration.

    Important: the Neutrik USB passthrough is reversible, allowing you to utilize the A/B cables we offer in options. Please review this article  for instructions on reversing the A and B ports.

    Thanks to Jonyfraze for creating this list:

    General Configuration (For All Layouts)

    • Brook PCB of Choice
    • 20-Pin wire-harness (*Recommended but is optional if you plan on manually wiring)
    • 4-Pin harness for L3, TP, R3 (*Recommended but is optional if you plan on manually wiring)
    • Neutrik USB Passthrough + 18” USB Cable (*Not needed if using a Brook PCB with included Breakout Board such as PS4+ Audio & Wireless Fighting Board)
    • Adhesive PCB Mounting Feet (*Brook PCBs can also be mounted directly to case using two #4-40 flat machine screws and nuts)

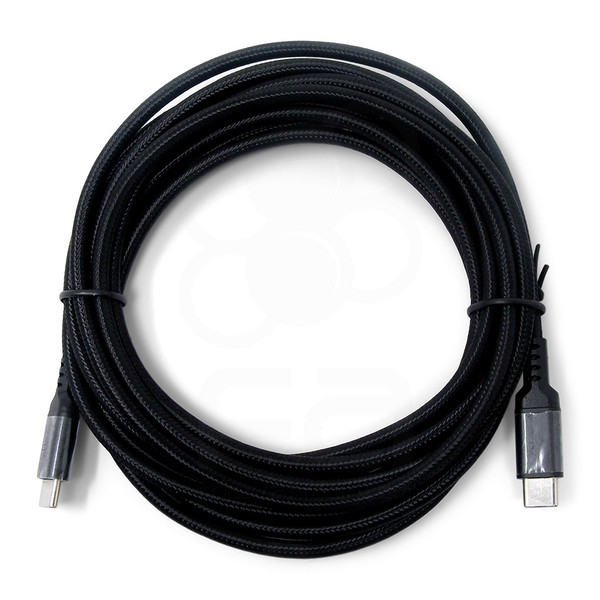

    • External 10ft USB Cable to connect to Console/PC.

    Joystick Model Specifics (Vewlix, Noir, Korean Noir)

    • Eight 30mm (action) buttons for top panel (screw-in required due to panel thickness)
    • Six 24mm (aux) buttons for side panels (screw-in required due to panel thickness)
    • Compatible Joysticks for 1.5” Side Panels: Sanwa JLF, Hori Hayabusa
    • Compatible Joysticks for 1.75” Side Panels: All above, Seimitsu LS-40 / LS-56.
    • Compatible Joysticks for 2” Side Panels: All above, Crown, Taeyoung Fanta, IST. (*Korean style levers with 35mm collar require the Korean Noir BnB Panels).
    • .187 to 5-pin Conversion Harness is needed for Korean style levers

    All-Button Model Specifics

    • One 30mm (up) button for top panel (screw-in required due to panel thickness)
    • Eleven 24mm (left, down, right, and actions) buttons for top panel (screw-in required due to panel thickness)
    • Six 24mm (aux) buttons for side panels (screw-in required due to panel thickness)
    • 5-Pin to Hitbox Conversion Harness

    WASD Model Specifics

    • Eight 30mm (action) buttons for top panel (screw-in required due to panel thickness)
    • Four 24mm (up, down, left, right) buttons for top panel.
    • Six 24mm (aux) buttons for side panels (screw-in required due to panel thickness)
    • 5-Pin to Hitbox Conversion Harness

  • Product Reviews


    Write A Review

    1. Exactly what I was looking for

      I was shopping around for my first Hitbox for XBSX. And they're just so hard to find for my console. This buying process was super easy. And the fact that you can add every part you need to build, it was really convenient. Putting it together wasn't hard at all. Just like a puzzle. I do wish the sides fit a little tighter because they do wobble a bit but it's not too big of a deal. My biggest gripe I would say are the edges. They are sharp. Except for the front where your hands lay. I think they should take the time to sand down all the edges and not just the front. So I definitely recommend the rubber legs pads for the bottom because of this. I didn't buy those. I just got the leg pegs. I got the all clear plexi with no art work. It looks so clean being able to see all the internals. Overall I'm happy with this box as my first. Definitely recommend to anyone looking for their first Hitbox. on Aug 30th 2023

    2. Great Case

      For my first custom case, I found this very easy to put together. Good build quality, and nice attention to detail with the beveled edges towards the bottom of the case where the hands rest. My only real wish would be for more mounting options for the PCB. Otherwise, I've very happy with my purchase and would happily recommend this to others. on Aug 16th 2023

    3. Good :)

      I like it a lot, good weight, first "actual" fight stick setup ive had, used a cardboard box for a year+. Is very good, took some time to put together. Blue protective stuff wasnt too hard to get off but I have intense nails. I did have one little blemish on the acrylic on the edge, but you cant even see it once its together so its okay :P on May 5th 2023

    4. Really Nice Case

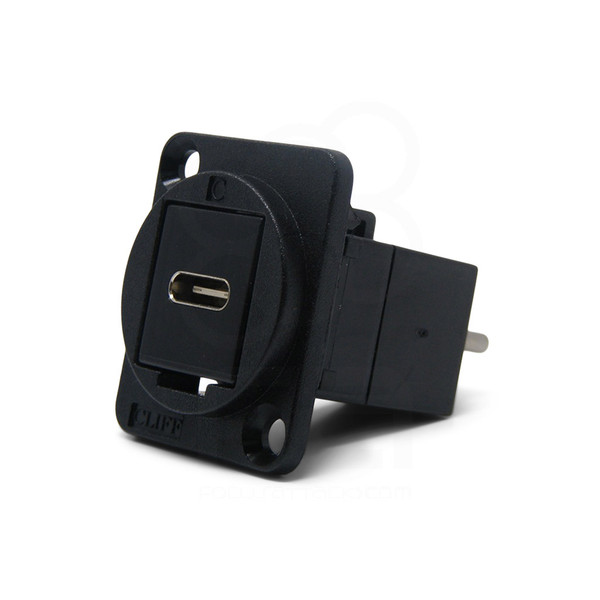

      Overall a nice case. Fairly easy to put together, buttons fit properly, and looks really good. The blue protective film was on the difficult side to remove, and I do wish I had a few more mounting locations, 1 for a lockout switch, 1 for turbo (older arcade shooters), and 1 for DP/LS/RS. I had to do a less conventional build putting the Neutrik Mounting Port towards the back and put the DP/LS/RS switch there, and put the USB-C 24mm Round Connector on the side in place of what would be the Touch Button. Basically just minor issues that few people will actually deal with. I appreciate that the case was designed with modularity in mind. My only other issue was with the Foam Pad. That Adhesive Cover did not come off easily, and part of the adhesive tore off. Didn't impact the application of the pad too much, but it does look funky without any art covering it. Good work, and I hope that we continue to see more from BNB in the future. on Dec 30th 2022
