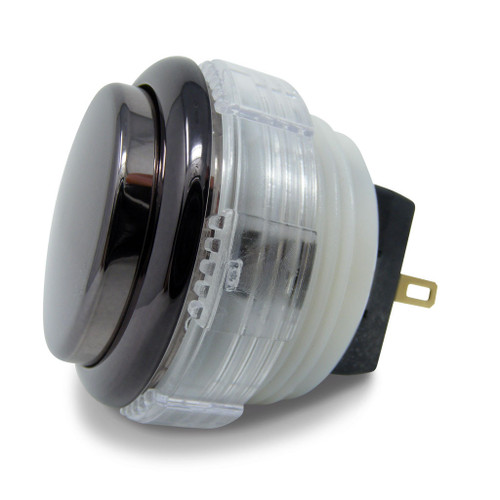

Crown/Samducksa SDB-202M MX 30mm Metallic Screwbutton Gunmetal

The SDB-202 is an evolution of the original SDB Series 201 and 201-C pushbutton, utilizing a Silver Cherry MX mechanical keyboard switch for high speed input.

Cherry MX Silver Switch

Cherry MX™
Speed Silver

Cherry MX™ Silver "linear feel" is an input speed evolution from the red MX. Both silent and linear, the travel distance to actuation is greatly reduced from 2mm to 1.2mm with total travel of just 3.4mm. There is no audible click feedback.

What does linear feel or tactile feel mean? Linear feel means that the feel is consistent from the moment you press down on the button. Tactile feel provides a bit of feedback upon actuation. Operating Force means how hard you have to push the button and how hard it will push back when depressed.The g in 45g, for example, represents a metric unit of force.

Thanks to The Keyboard Company and PC World for helpful descriptions on key switch characteristics.  Animated illustrations by cherrymx.de.

Metallic Plated. Screwbutton Style.

Much like the popular Sanwa OBSJ series pushbutton, the SDB 202M features metallic-plated plunger and rim. The button housing has a translucent white color, closely mimicking the style of the OBSJ. There is no guessing where this model's inspiration has originated, but the results are a very attractive Cherry MX enabled button.

This SDB-202 button is a 30mm screw-in arcade button, complete with a screw ring. The slim screw ring is a great design: it's only as thick as the rim - enough to ensure installs in tight spaces are not hindered by the ring itself. The cap of the Samducksa SDB-202 houses a clear plastic plunger, which is used to connect to the MX switch. The Cherry MX switch is securely fastened into the SDB's switch in a similar manner that the 201's Japanese Futaba switch is managed.

Bright, Vibrant Color Choices. Mix and Match Plunger and Rim

Samducksa color choices for SDB-201 are hardly an accident: The solid color buttons are available in a healthy choice of vibrant solid colours including blue, dark blue, green, black, grey, orange, pink, red, violet, white and yellow. These colors closely match Sanwa's offerings, ensuring a good opportunity to mix and match peripherals while adhering a traditional Sanwa color scheme.

An additional feature is the ability to mix and match between the translucent SDB-202C-MX series and solid color SDB-202-MX, providing dozens of combinations for your own customization.

Bundle with Silencer 30mm Foam Washers and Save!

Silencer is our 1mm-thick foam washer that helps to dampen the loud sounds common with tapping on the button plunger.  It conforms to the internal housing of many Sanwa or Seimitsu-style 30mm pushbuttons.

Known compatibility:

Click "Add to Order" to save 40% off retail of a Silencer foam washer for each button you purchase.

Silencer Installation

installing the Silencer foam pads into a Sanwa or Seimitsu pushbutton is straightforward.  Place the washer - plastic film side down - into the button housing.  Align the small tabs so that they stick out of the holes on each side of the housing.  For Seimitsu PS-15, and Hori Hayabusa low profile pushbuttons, snip the tabs off with scissors and place into the housing.

24 vs 30mm

When processing orders, a frequent mistake we found among new players is choosing the wrong size for action buttons, such as punch and kick. Within the fighting game genre, Japanese arcade buttons commonly consist of two diameter sizes: 24 millimeter and 30 milllimeter (mm). In most configurations, 30mm represents your action button.  These are front facing, appearing most prominent on your Fightstick control panel.  Option button, such as "Start", "Select", or more recently "Option", "Touch", or "Share" are usually 24mm. UPDATE: Owners of Neo Geo AES Joysticks will need 24mm pushbuttons instead of 30mm (Thanks SRK's DEZALB) Below is a visual representation of a common Fightstick control panel.  Throughout this article, we will mark 24mm in green, and 30mm in Orange. Checking the Proper Size Another way that players can misinterpret the pushbutton size is by measuring the pushbutton plunger.  Have a look at the diagram at right. The plunger - the part that you press down to represent an input - is 25mm or a bit smaller in most 30mm pushbuttons.  Often this leads to the conclusion that one needs a 24mm button and not 30mm. Similarly measuring the button rim can lead to confusion, as it is intentionally larger than the button hole it is placed in.  You don't want to use these measurements.  Instead, review the button housing diameter, or the hole the button will be placed in.  You can do this with a caliper - a digital caliper is often quite helpful for this and other arcade-related projects. Control Panel Configuration Most Fightsticks from MadCatz, Hori, Qanba, and similar will use these two sizes.  How the buttons are used will depend on the model joystick that you own. Over time, we'll provide example configurations for specific popular Fightstick models and arcade cabinets using the color key for 24mm (green) and 30mm (orange).  We'll also expand the key for future models if another size is introduced, and we offer for sale.
