Qanba Obsidian 1 Stickless Custom Art/Plexi Bundle

Qanba Obsidian 1 Stickless Custom Art/Plexi Bundle

Price:

$54.95 (USD)

Brand

AllFightSticks

SKU

CUSTOM-BNDL-OBS1-STICKLESS

Vendor

Condition

Weight

20.00 Ounces

Availability

Ships within 1-2 business days

Shipping

Calculated at checkout

Min Qty

unit(s)

Max Qty

4 unit(s)

Why is there a quantity limit? Learn more.

Gift Wrapping:

Choose Your Options

* [PLEXI/ART] Configuration:

* [ART] Cut Button Inserts For:

* [ARTWORK] Submit Art File - PSD (Recommended), .TIFF, JPG, PDF or PNG format:

Only supports a few types. Maximum file size: 244 MB

* Choose panel screw color (free):

	Black Oxide
	Silver

* Discount Bundle Items:

Included

Additional Instructions:

Quantity:

Product Description

Before you Buy: Requires Cutting Bottom Screw Housing, Firmware Update via Windows app

This issue occurs due to the need to comply with the traditional stickless layout positioning, and keeping the layout centered. You will need to remove a portion of the bottom plastic housing. You can accomplish this with a dremel with small rounded saw attachment, or some other form of cutting tool that works with plastic. You will need to cut enough for your 30mm button to fit.

In addition, you will need to download a firmware upgrade to unlock CPT certified SOCD cleaning (U + D = N, L + R = N). This is a Windows-only app.

Please see instructions under "Install Notes" for visual on where to cut and steps to install firmware

SOCD Firmware Available for this Device

The original hardware either has an updatable firmware that allows for cleaning simultaneous opposite cardinal directions (SOCD), one is currently built into the existing hardware, or the device can accept new firmware that offers SOCD capability. We assume that those purchasing this device will use the firmware update or the existing SOCD controls on the device. Please refer to our product description for details on this Fightstick's SOCD capabilities.

Bundle Does not include Actual Fightstick

Please note that the Custom Art/Plexi Bundle only contains parts that complement the commercial Fightstick it is designed for. It does not include the Fightstick - this is purchased separately from Amazon, eBay or another vendor.

The fighting game community has enthusiastically embraced all-button - a unique arcade input control method that replaces the up, down, left and right directions with pushbuttons instead of a joystick lever. Thanks in part to AllFightSticks - makers of incredibly durable steel FightStick enclosures - you can now own a stick-less version of your favorite model.

Save Over Purchasing Separately

This discounted bundle includes your replacement panel, plus custom artwork print, and clear plexi. Finally, you'll score special bonus items such as the Buttercade SnapOuts for 24mm and 30mm.

AFS Qanba Obsidian/Obsidian 2/Crystal Replacement Panel - Stickless Layout ($34.95 Value)
Stickless Replacement Plexi ($16.95 Value)
Buttercade SnapOut Button Tools: 30mm and 24mm ($15.95 Value)
Custom Printed Artwork ($14.95 Value)
5-Pin to All-Button Conversion Harness ($3.95 value)
Replacement Qanba Obsidian 1 Panel Screws - Set of 6 - Choice of Black or Stainless Steel ($1.25 value)
Brillianize Instant Detailer Pack For Plexiglass ($1.95 Value)

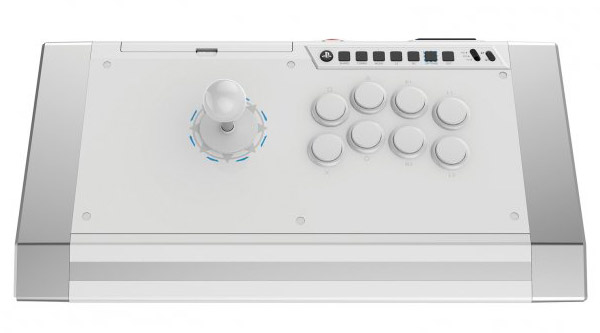

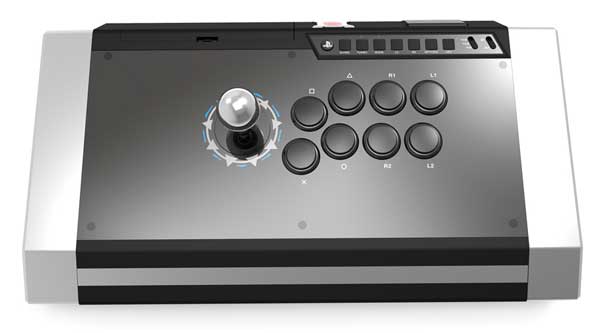

Designed for Qanba Obsidian 1, Qanba Pearl Models


Obsidian Stickless Panel Template (Must use custom AFS metal panel replacement. Not compatible with Arcade Shock stickless panel replacement - 1.8Mb zip)

Install Notes


The original panel has artwork permanently attached to it. To replace the original panel, you must first remove the 6 black stickers and epoxy glue below those stickers across the top and bottom area of the panel. Performing this will expose the original silver plexi panel screws. They will have epoxy residue - it's recommended that you purchase our replacement screws either in silver or black oxide.	To access the internal wiring, use a Phillips head-screwdriver to unscrew 6 screws on the bottom panel. The sixth screw is hidden behind a white warranty tamper sticker, located in the top middle area of the bottom panel. Upon removing the bottom panel, please note the long cable that leads to the headphone jack. Now, remove each of the quick disconnects using a needle nose plier and pinching the tiny tabs in each QCD, then pull up. Note the wire color arrangement - you will need to refer to this arrangement after the Stickless plate and your replacement 24mm buttons are installed. Next, disconnect the 5-pin harness attached to the joystick lever; you will use this later. Proceed to remove the joystick lever by first removing the balltop. You can do this by wedging a flathead screwdriver into the bottom of the joystick shaft, then turning the balltop clockwise. Finally, unscrew the four screws from the lever mounting plate.

With the terminals removed from each button, and joystick lever removed you are now able to lift the original panel from its plastic housing. You will find 6 silver screws holding the panel in place. Unscrew these and put them aside, as you will use them when installing the replacement panel.	You will notice that the stickless replacement panel will have an obstruction in the bottom hole; you cannot install a button while this is present. This issue occurs due to the need to comply with the traditional stickless layout positioning, and keeping the layout centered. You will need to remove a portion of the bottom plastic housing. You can accomplish this with a Dremel with small rounded saw attachment, or some other form of cutting tool that can cut plastic. You will need to cut enough for your 30mm button to fit. The guide above can assist with how much to cut, though you can likely cut less, so long as the area currently blocked by the plastic housing is clear.

Now, with the bottom middle screw housing trimmed to accommodate the button, you can install the replacement AFS Stickless panel. Here, you will use the six silver screws that you removed from the original panel.	With the firmware update completed, we now move to installing new artwork and plexi. First, install the artwork onto the panel Next, attach the plexi using either screws recovered when removing the original plexi, or the replacement screws you purchased separately.

Now, we will attach the directional buttons and action buttons. The directional buttons are connected to the 5-Pin to All-Button Conversion Harness. The male end of the 5-pin harness attaches to the 5-pin female harness that is connected to the Qanba Obsidian's PCB board. Follow the visual guide to match the directional inputs to wire color. If you plan to use snapbuttons, their orientation must conform to the tabbed openings on the metal panel's button holes. This is due to how Qanba manages button installs, opting instead to attach the button to the plexi rather than the metal panel. If you have artwork under the button cap, you will need to rotate the artwork to match the orientation of the button as it is installed. The action buttons (punch, kick) are now 24mm instead of 30mm. You will connect the wiring to each button based on the color guide shown in earlier steps.

With the direction and action buttons installed, it's time to test your inputs. The application used here is gamepadtester.net, a free online application that can confirm directions as input by the fightstick to your computer, and by definition, to your console. Be sure to first change your Obsidian platform switch to "PC" before plugging into your computer and performing the test. It's worthwhile to test the inputs now. At the very least it will confirm that you wired the buttons correctly to the 5-pin harness. Remember that the first 24mm directional button is LEFT, the second 24mm is DOWN, the third 24mm is RIGHT, and the fourth is UP. Before proceeding to the next steps (firmware install), see if your Obsidian model may already have CPT compliant cleaning in its hardware. The firmware was introduced on April 27. 2023. If you purchased the Obsidian or Pearl past this date, the newer firmware may already be installed. When performing the inputs with the newer firmware, pressing the left and right input simultaneously should show no activity on the gamepad screen. The same should apply when pressing the up and down buttons at the same time. This lack of activity will represent "neutral", meaning that the hardware already has the newer firmware. If you instead see both directions light up on the gamepad tester application, proceed to the next steps.	The following instruction assumes you will use the CPT certified SOCD cleaner that is enabled via firmware upgrade. You will first download the firmware file obsidian-stickless-cpt-firmware_v124.zip. Next, unzip and run the "Qanba Obsidian Arcade Joystick Update V1.24 20230425.exe" program. If there is a security software prompt that states running the program poses a safety risk, please choose to ignore it or add the exe file to as an exception to your virus security app Now, with the app open, you will see a screen similar to the above image. It will display the firmware upgrade version under "File Information"

In these next steps, you will connect your Qanba Obsidian to your PC and update the firmware. To connect your Obsidian to the firmware upgrade app, press and hold the [PS] button on the joystick while plugging the USB data cable into the computer. After the connection is successful, [Qanba Obsidian Arcade Joystick] will be displayed on the interface. Press the "Update" button	These final steps are important After pressing the "Update" button, wait for the update progress bar to finish running. Do NOT interrupt the process by removing the USB cable, or powering off your computer. Once the update is complete, a window will pop up, indicating that both the update is successful and the verification is completed. Click [OK] (appears in Chinese) to complete the update.

With your buttons, artwork and wiring installed, it's time to test the inputs again. As a reminder, when performing the inputs with the newer firmware, pressing the left and right input simultaneously should show no activity on the gamepad screen. The same should apply when pressing the up and down buttons at the same time. This lack of activity will represent "neutral" If you're able to confirm correct direction and neutral inputs via app, you're ready to go. Congratulations!

Durable Steel Panel, Matte Finish

Each AllFightSticks panel is constructed out of steel, with a protective black powdercoat, providing a matte-like texture that can also manage wear and tear.

Options

You have several options to personalize your control panel, such as button layout, removal of control panel or screws in some models, button label etching, and text etching.

REMOVING DEFAULT ELEMENTS | CUT BUTTON INSERTS | CONSOLE BUTTON LABELS | ETCHED TEXT | ETCH TEXT FONTS | PARTIAL & FULL ETCH | ADDITIONAL INSTRUCTIONS

Layout Configuration

Each Fightstick has its own characteristics, with some sharing similar elements, such as the popular Vewlix button layout. We will specify what options are available for each Fightstick. Below are the most common button layout configurations:

8 Button Vewlix

First 6 Buttons

Last 6 Buttons

7 Button Vewlix

- Back to topic top

Removing Default Elements

Some Fightsticks, such as the popular MadCatz TE, offer additional personalization options by removing default elements such as control panel, start button, or screws. Cut options are defaulted to their authentic counterpart, displayed as [YES (default)] in the options list. For example, a MadCatz TE, the default configuration is to have the turbo/guide portion of the control panel cut, so that the control panel can fit properly. You have the option to select [NO] to prevent cutting these areas.

Cut Control Panel? [NO]

Cut Start Button? [NO]

Cut Middle and/or Bottom Screws? [NO]

Cut Control Panel? [NO] - If you own a MadCatz TE, and installed a PS360+, you may no longer need the Turbo/Guide area of the control panel, located at top left. This option allows you to remove the Turbo/Guide portion. Please note that you MUST remove the actual control panel on the TE by unscrewing it before applying the plexi, or you risk damaging the plexi. Also, please make certain to select this option if you are also choosing to have artwork printed, or the plexi and artwork won't match.

Cut Start Button? [NO] - On some joysticks - such as the Qanba Q4 - the start button is directly on the panel. You can select to have this removed. You can also select this should you desire a panel similar to the Eightarc Fusion or Synthesis series Fightstick, as the start button is moved elsewhere. Again, this option is available on specific joysticks.

Cut Middle and/or Bottom Screws? [NO] - Selecting "no" on this option allows you to remove the middle top and bottom screw holes on specific joysticks, either for a cleaner appearance or to avoid rubbing your wrist against the screw. Please reconsider this option if you intend to have a full panel etch on your plexi, as etching physically changes portions of the plexi due to heat. In this case, it is best to leave the screw holes in place in order to keep the panel securely positioned.

- Back to topic top

Cut Button Inserts

Plexworks Diagram: Button Artwork Cut Size Comparison

Pushbutton manufacturers such as Sanwa, Seimitsu, Crown and GamerFinger have each produced specific models with a clear or translucent plastic cap and flat plunger. These are often used to display a graphical insert, allowing you to enhance the button's appearance. That said, each button manufacturer has designed the artwork cap with a different diameter than their competitors. For example, GamerFinger's artwork cap has a diameter that is slightly larger than Seimitsu or Sanwa. An insert cut for a Sanwa artwork cap will fit loosely when inserted into the GamerFinger artwork cap. This is an undesirable result that can produce a white or colored ring around the insert.

Now, you can choose the button insert cut to match the pushbutton you intend to use. This allows the insert to fit snugly within the cap.

Brands and Model with Artwork Caps

Sanwa - OBSC (30mm) | OBSC (24mm)
Seimitsu - PS-14-GN-C (30mm) | PS-14-DN-C (24mm) | PS-14-K (30mm) | PS-14-KN (30mm) | PS-14-DN-K (24mm)
Crown - SDB-201-C, SDB-202 MX (30mm) | SDB-202-MX (24mm)
GamerFinger - HBFS30 (30mm) | HBFS24 (24mm)

In some instances, a button brand or model does not have a 24mm equivalent with art cap. In this case, we will cut to the default size of Sanwa 24mm insert.

Please note that if you later intend to purchase a different button, you may need to get new button inserts or new artwork. If you are uncertain which button you may choose, Sanwa is chosen by default.

24 vs 30mm

When processing orders, a frequent mistake we found among new players is choosing the wrong size for action buttons, such as punch and kick.

Within the fighting game genre, Japanese arcade buttons commonly consist of two diameter sizes: 24 millimeter and 30 milllimeter (mm). In most configurations, 30mm represents your action button. These are front facing, appearing most prominent on your Fightstick control panel. Option button, such as "Start", "Select", or more recently "Option", "Touch", or "Share" are usually 24mm.

UPDATE: Owners of Neo Geo AES Joysticks will need 24mm pushbuttons instead of 30mm (Thanks SRK's DEZALB)

Below is a visual representation of a common Fightstick control panel. Throughout this article, we will mark 24mm in green, and 30mm in Orange.

Common joystick configuration

Checking the Proper Size

Another way that players can misinterpret the pushbutton size is by measuring the pushbutton plunger. Have a look at the diagram at right.

The plunger - the part that you press down to represent an input - is 25mm or a bit smaller in most 30mm pushbuttons. Often this leads to the conclusion that one needs a 24mm button and not 30mm.

Similarly measuring the button rim can lead to confusion, as it is intentionally larger than the button hole it is placed in. You don't want to use these measurements. Instead, review the button housing diameter, or the hole the button will be placed in. You can do this with a caliper - a digital caliper is often quite helpful for this and other arcade-related projects.

Control Panel Configuration

Most Fightsticks from MadCatz, Hori, Qanba, and similar will use these two sizes. How the buttons are used will depend on the model joystick that you own. Over time, we'll provide example configurations for specific popular Fightstick models and arcade cabinets using the color key for 24mm (green) and 30mm (orange). We'll also expand the key for future models if another size is introduced, and we offer for sale.

Qanba Q1 and Mayflash/Venom Model Configuration

Console Button Labels

Depending on the plexi material you choose, you can have your preferred console button designation etched onto it. This is helpful if you swap art often, and do not want to place the labeling onto the artwork.

Below are the most common console labels. Other button labels may apply specifically to the Fightstick model, such as Dreamcast console for the Agetec HKT-7300

Sony PS3/PS4

Xbox 360/Xbox One

Hybrid (PS3/PS4, Xbox 360/Xbox One)

- Back to topic top

Etched Text

For those looking to personalize their plexiglass control panel with their name or handle, but not as familiar with graphic design applications like Photoshop, you can add text etchings. Choose from a variety of fonts, and your position on the control panel.

Text Position

You can place text in one of up to four positions on your control panel. How many positions are available will vary depending on the model of control panel you choose. Of the positions are the following:

Under Turbo/CP (24pt)

Upper Right Corner (36pt)

Lower Left Corner (36pt)

Lower Right Corner (36pt)

- Back to topic top

Etch Text Fonts

You can choose from a variety of fonts across seven distinct themes:

COMIC | GRUNGE | HANDWRITTEN | POP CULTURE | CLASSIC/RETRO | SANS | SERIF

Partial and Full Etch

Etching on plexi provides you an extra layer for personalizing your control panel. Artwork is etched onto the bottom of clear plexi, or on top of opaque or translucent color plexi. You have two options to choose.

Partial Etch (Sample Illustration)

Full Etch (Sample Illustration)

Partial Etch

A partial etch is a graphic up to 5 inches square, placed nearly anywhere on the control panel face. You can etch a logo, name/handle, or illustration. Please note that this is not the same as etched text; you will submit the graphic to us for etching.

To place an order for a partial etch, select the "Partial (5"x5")" option next to the "Full or Partial Etching" label. We must know where to place your etch graphic on the panel, so be sure to provide placement instructions within the "Additional Instructions" text form, or submit the graphic using our Photoshop template. If we don't have this, we will put the task on hold, and send a message asking for clarification on where you want the graphic to appear on the panel.

Full Etch

A full etch can occupy the entire area of the control panel. It can consist of a single illustration, or multiple illustrations placed strategically on the control panel. To submit your graphic, please use our Photoshop template and click "Choose file" next to "Submit Etch Artwork".

Please note: On some models, a full etch graphic is not available, as the plexi used for that model is thinner than .060" and thus can warp under the heat that is generated from a laser etching machine.

Etch Graphic Resolution

It is recommended that the graphic submitted is high-resolution - between 300dpi or 600dpi (dots per inch). Anything less may etch with less fidelity. Click for more information about submitting etch artwork.

- Back to topic top

Additional Instructions

If you would like to clarify something regarding your personalization that wasn't covered in the options, you can complete the "Additional Instructions" form. Please do not make requests for customization outside of the requirements of the plexi, such as fixing your graphic, or creating a logo, as any orders placed in "HOLD" status is pushed to the bottom of the queue until it is changed back to "IN PROGRESS".

- Back to topic top

Image Edit

If you would like to use a free, online Photoshop-like app to check out whether your artwork will work with a layout we offer, I highly recommend Photopea This amazing app works with our PSD templates and is a great way to preview your artwork or create new art files. It also exports to PSD, which is the format we recommend for submitting artwork.

Visit Photopea

Support
