Semi-Custom Non Slip Foam Bottom Pad for HAUTE42 Haute Board Mini

A foam pad is a great choice for those who enjoy playing fighting games with an arcade stick on their lap, or on a flat surface such as a table. Now, you can get an attractive custom etch and cut for your favorite Fightstick model.

Non-Slip Surface

The pad is made of a synthetic rubber foam, custom cut to shape with a strong adhesive backing, and attaches to the underside of your Fightstick. Lap players will appreciate the extra padding offered here as it removes the feeling of cold steel or plastic on one's legs. Additionally, the foam is designed to add friction when moved, allowing the Fightstick to largely remain in place when playing on a tabletop.

Designed for Haute 42/COSMOX Mini

Haute42's HauteBoard Mini is (currently) its most economical and compact keyboard switch WASD controller, and is constructed of main PCB board layered with multiple acrylic pieces.

Haute Board Mini TOP (1.5Mb zip)
Haute Board Mini BOTTOM (1.5Mb zip)

Installation

Please note that the adhesive used for the foam pads is very strong, and will not allow for repositioning once applied. If you are using the RECT pads, be sure to position the pads away from any screws that you may need to access later, as the pad will cover them otherwise.

Before removing the adhesive liner, it is recommended that you perform a test-alignment of the pad onto your Fightstick.
When you have confirmed position with liner on, first peel off a VERY SMALL PORTION the liner and lightly place the foam pad onto the surface by the foam's edge. Do not yet press down - instead, rotate the edge of the foam and perform test positioning by laying the rest of the foam towards the surface while the liner is still on
Next, slowly peel more of the liner from the foam while continually checking the alignment on the desired surface area.
Continue the process until the liner is removed fully, and the foam is aligned correctly on the surface.
Once you are satisfied with the alignment, press firmly across the padding to allow the adhesive to set.

IMPORTANT: Please note that the adhesive used for the foam pads is very strong, and will not allow for repositioning once applied. Once the adhesive has set, it is very difficult to remove the foam pad without damaging the foam and leaving a heavy adhesive residue. Should you need to do this, you may try to use GooGone or similar product and a plastic razor to scrape the foam from the surface. If you are unsure whether you want to have a permanent foam bottom, please reconsider the purchase.

Need Help?

If you are unfamiliar with foam pads and the options available to you, click the "Options Guide" tab, or scroll further if you are on a mobile device.

Options Guide

Options include foam pad thickness, color, pattern, and font if you choose Type 1 Layout (text)

Jump to: Pad Color | Pattern | Type 1 Fonts

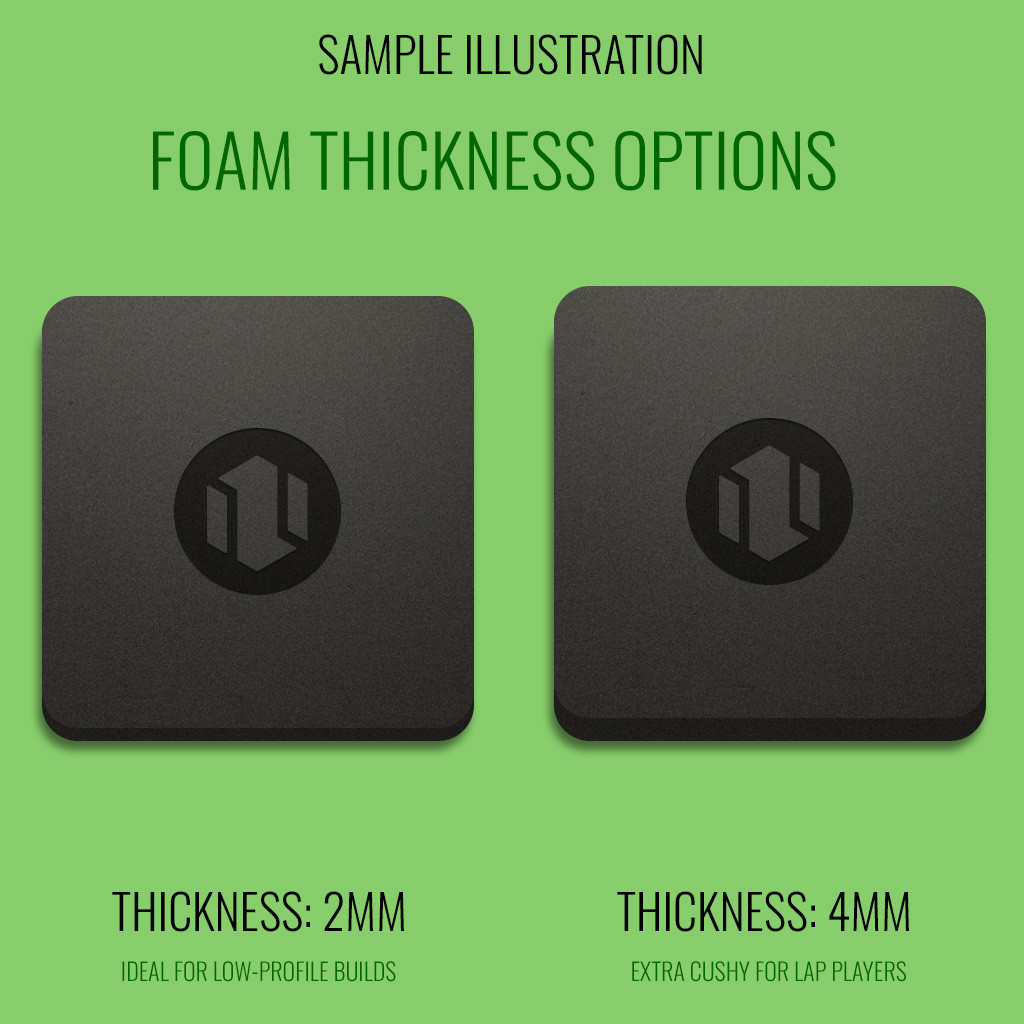

Thin or Thick Padding

For specific models, you can choose a narrower 2 millimeter (0.78 inch) pad, or cushiony 4 millimeter (0.157 inch) pad. A thinner 2mm pad is suitable for those who desire a lower profile or playing on a flat surface such as a table. The thicker 4mm is great for those playing on a lap, given the extra padding.

Choose your Color to Match or Enhance

We currently offer custom foam pads in these colors. Each color has its strengths for etching.

Choose from Several Laser-Etched Patterns

Each pattern is vector etched. Vector etching user a laser to score a crisp line into the material, rather than cutting through it.

Foam pad sample pattern

We currently offer the following patterns:

Etch Text Fonts

You can choose from a variety of fonts across seven distinct themes:

COMIC | GRUNGE | HANDWRITTEN | POP CULTURE | CLASSIC/RETRO | SANS | SERIF
