Artwork Print and Cut for Nacon Daija 2022 (PS5 | XSX)

Artwork Print and Cut for Nacon Daija 2022 (PS5 | XSX)

Rating

(1)

Price:

$14.95 (USD)

Brand

FA Plexworks

SKU

CUSTOM-NACONDAIJA-PS5-ART-TOP

Weight

3.00 Ounces

Availability

Please allow up to 7-10 business days to process custom orders. Order will appear in Custom Job Tracker.

Shipping

Calculated at checkout

Choose Your Options

* Choose Material Type:

* If Type 2, choose holographic pattern:

* Size for Button Spacers?

* Configuration:

* Cut Button Inserts For:

Add Console Button Input Overlay?

Add Direction Button Overlay?

Add Brand Logo Overlay (BL)?

* Submit Artwork - .PSD (Recommended), .TIFF, JPG, PDF or PNG format:

Only supports a few types. Maximum file size: 244 MB

Quantity:

Product Description

Please note that this Fightstick has its own plexiglass panel. You do not need to purchase a custom plexi top. The plexi tops here are offered as a repair or replacement for your original panel, or a personalized variation.

Please Read Before You Order

Below is important information to know before placing a custom order with us:

Project L Official Artwork: Do not submit the PNG samples. Instead, please download the zipped Photoshop PSD version, unzip the file and integrate them into our artwork templates for your desired fightstick model
Hori Official Street Fighter 6 Artwork: Please do not submit this artwork for the Fightstick Alpha. It is not compatible with our print and cut, as it contains registration marks that cannot be removed. If you wish to have the artwork printed only, you can use our Non-Commercial Fightstick Panel Artwork Print service.
Hori Official Tekken 8 Artwork. We can print and cut most of Hori's official Tekken 8 artwork, as they revised the artwork files to allow removing the registration marks. Exception is artwork for Jun Kazama which has registration marks that cannot be removed.
Custom Orders do Not Ship Separately: If you place an order for a personalized product along with non-custom products, such as arcade part or merchandise, please note that all items will ship together.

Control panel artwork represents one of the most convenient means to personalize your fightstick, giving it a new look almost immediately.

High Resolution, Color Fidelity

Artwork prints are developed using a top-of-the-line commercial printer, offering vivid, professional-quality artwork replication. The printer is capable of resolution of 1200dpi (dots per inch), and 8 color ink system (Cyan, Magenta, Yellow, K(Black) + Light Cyan, Light Magenta and White) reproduces artwork over a wide color range.

Artwork is printed on 10 mil cardstock sheet. It carries 95% brightness and tensile strength of 100 pounds per inch.

Each print is laser cut to your specifications, as presented by available options. You will receive the print with perforated button inserts designed to fit your chosen button brand. In some cases, such as the Mayflash series, the control panel elements may also have perforated cuts. Gently press downward to remove the cutouts.

Important Notes about Color Fidelity, Brightness

Please do not change the RGB color space of our templates to CYMK when submitting your artwork. Our templates are intentionally designed in the RGB color space to best match most customer's screen expectations, and will typically convert CYMK to RGB when printing. We will not honor demands to reprint artwork whose template is changed to CYMK color space.
Unless properly calibrated to your printer and viewing environment, your monitor does not accurately represent the brightness of paper. Artwork submissions may need adjustment to ensure prints are not too dark. Please read this helpful support article for more information

New: Holographic Paper

Animated holograph paper example

Example animated photo displayed for illustrative purposes only. Pattern "Space Dots" shown.

In addition to white cardstock sheets, we now offer holographic paper sheets in several captivating patterns. Holographic sheets are created from paper that is imprinted or embossed with a design or image and then covered in a thin, transparent film of metal. The finished sheet has a characteristic luster — a kind of rainbow iridescence — when the imprinted pattern is viewed from particular perspectives.

Holographic cardstock has a similar tensile strength to our existing cardstock, about 110-115 pounds per inch

Differences between White Cardstock and Holographic Print

Both materials have their strengths. White cardstock is our tried and true paper material, producing vibrant colors with a textured semigloss. It's 95% brightness brings out the best color fidelity because it has a white backing.

Holographic paper has a striking metallic finish. By itself, its color changing properties are quite eye-catching. This is even more evident when a pattern is used. However, because the material does not have a white backing, the illustration's areas of white will instead show the metallic sheen. This can lead to a slightly duller appearance compared to cardstock. These comparison photos may help to illustrate. Please note that while the colors can appear more muted on holograph paper, the reflective nature of the material as well as its color properties will vary depending on the angle the illustration is seen and the material's pattern. Not every print will exactly resemble the below example.

White cardstock

Holographic paper

Holographic Patterns

To review the list of current patterns we offer, please click the "Option Guide" Tab, then click "Holographic Patterns" link. On a mobile device? Scroll down to "Options Guide", then click "Holographic Patterns" link.

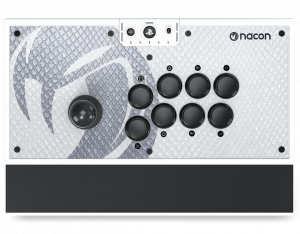

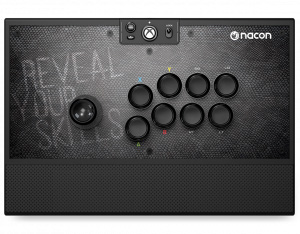

Designed for Nacon Daija 2022 (PS5 | XSX)


Nacon Daija PS5\|XBox Series Panel Template (2022 Model, 1.5Mb zip)

The Daija is a European import Arcade Joystick lever from French game peripheral company Nacon. Its newer 2022 model is compatible with Playstation 5 (White), or Xbox Series X|S (Black). Please note that the Daija already has its own removable panel for artwork. We do not yet offer a replacement panel, as we do not have access to the newer 2022 model.

Installation Notes

The Nacon Daija possesses a flip top panel, making it very accessible for replacing joystick lever and buttons.Tools are also provided to aid in removing the balltop and the top plexi panel for swapping artwork. This guide will provide basic instructions for replacing the artwork. Please note the instructions represent the original Nacon Daija model, as we do not possess the newer 2022 model.


First, open the Fightstick panel by pressing the two red buttons on each side of the case, the lift upwards. The Nacon Daija contains two main tools that you will use when swapping the plexi panel or artwork. The first is a mini hex screw, used to remove the 6 screws on the top panel. The second is a metal disk with a flat side.	Remove the metal disk and place the flat side between the joystick shaft's bottom slit. This will allow you to loosen the balltop without spinning the shaft. With the balltop removed, you are now able to focus on the plexi panel.

Use the mini hex screwdriver to remove the six (6) screws on the Daija's top panel.

With the original panel removed, you can now apply a new plexi panel, or install artwork and then replace the original panel, reversing the steps mentioned before.	The original Nacon Daija plexi panel is designed to allow artwork to swap easily without removing the button. The button hole diameter on the plexi is thus larger than usual, and requires a button spacer. You can choose to keep this configuration, or opt for plexi that places the button above the panel, and does not need spacers.
