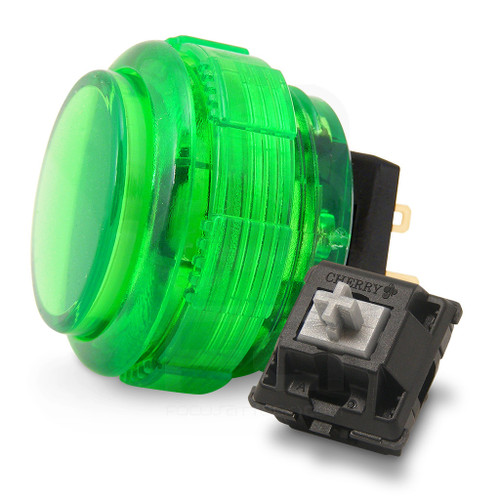

Crown/Samducksa SDB-202C MX 30mm Translucent Screwbutton Green

×
Rating
Price:
$5.45 (USD)
SKU
CROWN-SDB-202C-30-CG
Weight
0.48 Ounces
Availability
Ships within 1-2 business days
Shipping
Calculated at checkout
Max Qty
16 unit(s)

Why is there a quantity limit? Learn more. new-window-icon.png



Quantity:
Description
Reviews
Videos
Warranty
Other Details
  • Product Description

    The SDB-202 is an evolution of the original SDB Series 201 and 201-C pushbutton, utilizing a Silver Cherry MX mechanical keyboard switch for high speed input.

    Cherry MX Silver Switch

    Cherry MX™
    Speed Silver

    Cherry MX™ Silver "linear feel" is an input speed evolution from the red MX. Both silent and linear, the travel distance to actuation is greatly reduced from 2mm to 1.2mm with total travel of just 3.4mm. There is no audible click feedback.

    What does linear feel or tactile feel mean? Linear feel means that the feel is consistent from the moment you press down on the button. Tactile feel provides a bit of feedback upon actuation. Operating Force means how hard you have to push the button and how hard it will push back when depressed.The g in 45g, for example, represents a metric unit of force.

    Thanks to The Keyboard Company and PC World for helpful descriptions on key switch characteristics.  Animated illustrations by cherrymx.de.

    Translucent color. Screwbutton Style.

    samducksa-sdb-202-pieces-sm.jpgEach button in the SDB-202-C series has a translucent color, similar to that of Sanwa's OBSC series, or Seimitsu PS-14-K and KN models.

    This SDB-202 button is a 30mm screw-in arcade button, complete with a screw ring. The slim screw ring is a great design: it's only as thick as the rim - enough to ensure installs in tight spaces are not hindered by the ring itself. The cap of the Samducksa SDB-202 houses a clear plastic plunger, which is used to connect to the MX switch. The Cherry MX switch is securely fastened into the SDB's switch in a similar manner that the 201's Japanese Futaba switch is managed.

    Mix and Match between SDB201 and SDB-201C pushbutton plunger and rim.Bright, Vibrant Color Choices. Mix and Match Plunger and Rim

    Samducksa color choices for SDB-201 are hardly an accident: The solid color buttons are available in a healthy choice of vibrant solid colours including blue, dark blue, green, black, grey, orange, pink, red, violet, white and yellow. These colors closely match Sanwa's offerings, ensuring a good opportunity to mix and match peripherals while adhering a traditional Sanwa color scheme.

    An additional feature is the ability to mix and match between the translucent SDB-202C-MX series and solid color SDB-202-MX, providing dozens of combinations for your own customization.

    Bundle with Silencer 30mm Foam Washers and Save!

    Silencer Foam Washer Silencer installed in Sanwa pushbutton
    Silencer installed into Seimitsu screwbutton Silencer installed in Seimitsu PS-15 Low Profile (tabs snipped to fit)

    Silencer is our 1mm-thick foam washer that helps to dampen the loud sounds common with tapping on the button plunger.  It conforms to the internal housing of many Sanwa or Seimitsu-style 30mm pushbuttons.

    Known compatibility:

    SanwaSeimitsuCrownHori

    Click "Add to Order" to save 40% off retail of a Silencer foam washer for each button you purchase.

    Silencer Installation

    installing the Silencer foam pads into a Sanwa or Seimitsu pushbutton is straightforward.  Place the washer - plastic film side down - into the button housing.  Align the small tabs so that they stick out of the holes on each side of the housing.  For Seimitsu PS-15, and Hori Hayabusa low profile pushbuttons, snip the tabs off with scissors and place into the housing.

    24 vs 30mm

    When processing orders, a frequent mistake we found among new players is choosing the wrong size for action buttons, such as punch and kick.

    Within the fighting game genre, Japanese arcade buttons commonly consist of two diameter sizes: 24 millimeter and 30 milllimeter (mm). In most configurations, 30mm represents your action button.  These are front facing, appearing most prominent on your Fightstick control panel.  Option button, such as "Start", "Select", or more recently "Option", "Touch", or "Share" are usually 24mm.

    UPDATE: Owners of Neo Geo AES Joysticks will need 24mm pushbuttons instead of 30mm (Thanks SRK's DEZALB)

    Below is a visual representation of a common Fightstick control panel.  Throughout this article, we will mark 24mm in green, and 30mm in Orange.

    Common joystick configuration

    Checking the Proper Size

    button-30mm.pngAnother way that players can misinterpret the pushbutton size is by measuring the pushbutton plunger.  Have a look at the diagram at right.

    The plunger - the part that you press down to represent an input - is 25mm or a bit smaller in most 30mm pushbuttons.  Often this leads to the conclusion that one needs a 24mm button and not 30mm.

    Similarly measuring the button rim can lead to confusion, as it is intentionally larger than the button hole it is placed in.  You don't want to use these measurements.  Instead, review the button housing diameter, or the hole the button will be placed in.  You can do this with a caliper - a digital caliper is often quite helpful for this and other arcade-related projects.

    Control Panel Configuration

    Most Fightsticks from MadCatz, Hori, Qanba, and similar will use these two sizes.  How the buttons are used will depend on the model joystick that you own. Over time, we'll provide example configurations for specific popular Fightstick models and arcade cabinets using the color key for 24mm (green) and 30mm (orange).  We'll also expand the key for future models if another size is introduced, and we offer for sale.



    24vs30mm Hitbox Example
    HRAP and Qanba Model Configuration
    MadCatz Model Configuration
    Qanba Q1 and Mayflash/Venom Model Configuration

  • Product Reviews

    ×

    Write A Review

    1. Sublime Green

      The color is very nice it's green as green can be without being too dark or too florescent. on Jun 24th 2023

    2. Very easy to mod if you know what you'ee doing

      I bought these just to be able to use green cherry mx switches and they work like a charm. I reccomend you watch fa's video on how to change rhem before you do anything though on Apr 28th 2021

    3. Good as is bad for modding

      It worked as is but I wanted a more sensitive switch so I tried swapping out the switch inside. I managed to do 7/8 of my switches the last one no longer works so I'm gonna have to buy a new one.

      on Jun 3rd 2019

  • Product Videos

    • Tech Corner: Swapping Mechanical Switches in the Samducksa 202 Pushbutton
      Inspired by GamerFinger, Korean arcade parts manufacturer Samd...

    Tech Corner: Swapping Mechanical Switches in the Samducksa 202 Pushbutton

    Inspired by GamerFinger, Korean arcade parts manufacturer Samducksa (Crown) introduced the 202 and 202-C mechanical pushbutton in 2019. The 202 features a Cherry MX-Silver mechanical switch for ultra-quick inputs. However, should you desire another MX-style mechanical switch, it is possible to install one by following the instructions in this episode of Tech Corner by our technical support contact Joe Howell (aka NGN | No Good Citizen). Products mentioned in this video: Samducksa 202 MX Pushbuttons - https://www.focusattack.com/pushbuttons/popular-brands/crown/sdb-series/30mm/202-mx/ Cherry MX mechanical keyboard microswitches - https://www.focusattack.com/brands/Cherry.html
