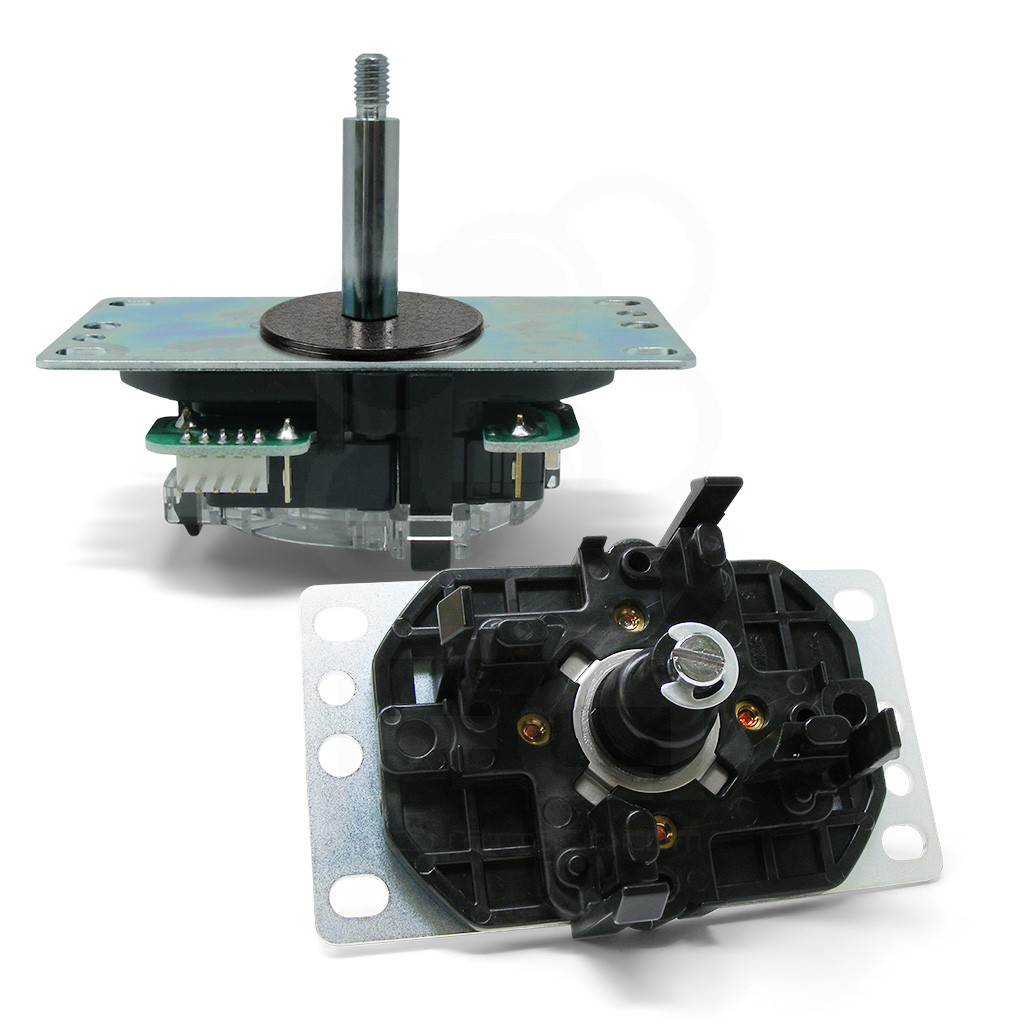

Sanwa JLX2-TP-8YT Joystick [Successor to Sanwa JLX]

Sanwa Denshi manufacturer of the time-tested Sanwa JLF-TP-8YT Joystick has listened to player feedback since introducing its successor, the Sanwa JLX-TP-8YT Joystick. Doing so, Sanwa brings back some of the qualities enthisiasts admired of the original JLF, while improving aspects of the JLX.

A Sturdier Version Over the JLX

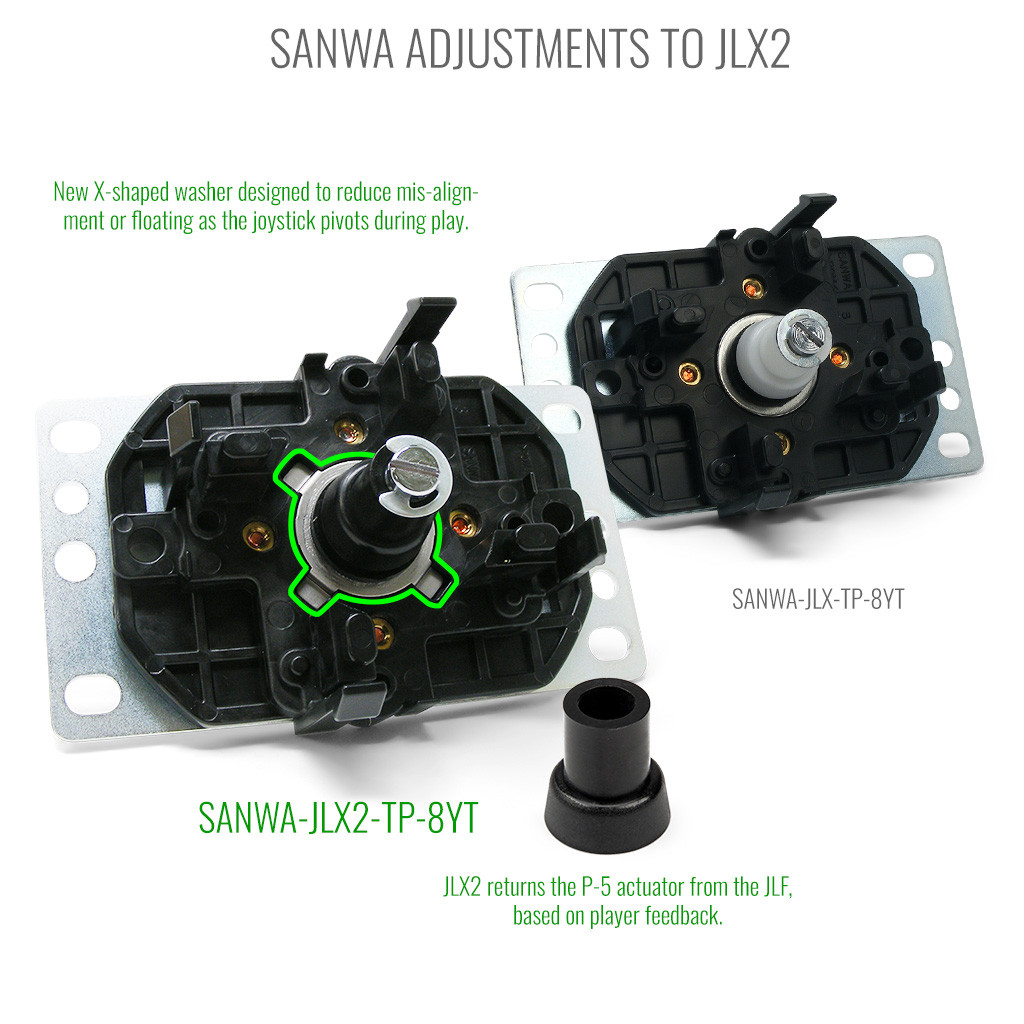

The two most notable changes between the JLX and JLX2 happen on the inside:

• First, its body is revised to now accomodate a new X-shaped washer. This washer is designed to reduce risk of misalignment or "floating" as the joystick pivots during play. This can lead to cleaner diagonal motion.
• Next, Sanwa returns the original Sanwa JLF P-5 Actuator in black. The Sanwa JLF P-W Actuator within the original JLX is 16.2mm wide at the base - just over .4mm wider than the original Sanwa JLF actuator at 15.8mm. This fallback to P-5 reintroduces the feel that some players say was missing with the JLX's white P-W actuator.

Actuator Specs

Below is a visual of available actuators for Sanwa JLF. The original JLF actuator has a 15.8mm diameter. Following this are actuators of increasing diameter. Use this to experiment with your preferred engagement sensitivity.

Further Improvements Over JLF

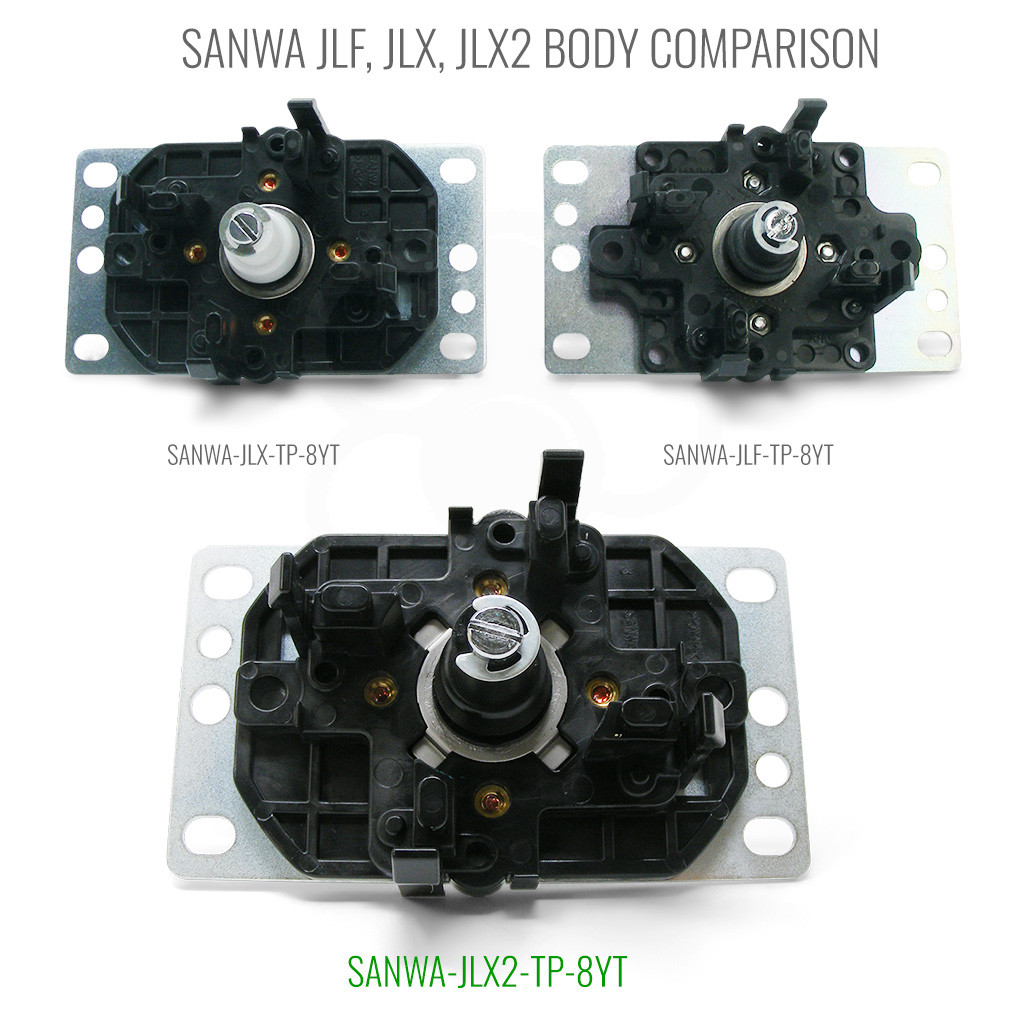

The Sanwa JLX2 has achieved high-precision molding and improved input accuracy by changing the material of the component parts. Please review below some of the technical improvements over the JLF:

• LX-P-2 M base material changed from nylon to POM (polyacetal resin). It is less susceptible to environmental influences such as temperature and humidity.
• Adjusted the shape inside the M base where the bearing fits. Less rattling of the bearing than before.
• Changed bearing material from POM to nylon. Abrasion resistance and sliding against the M base are enhanced.

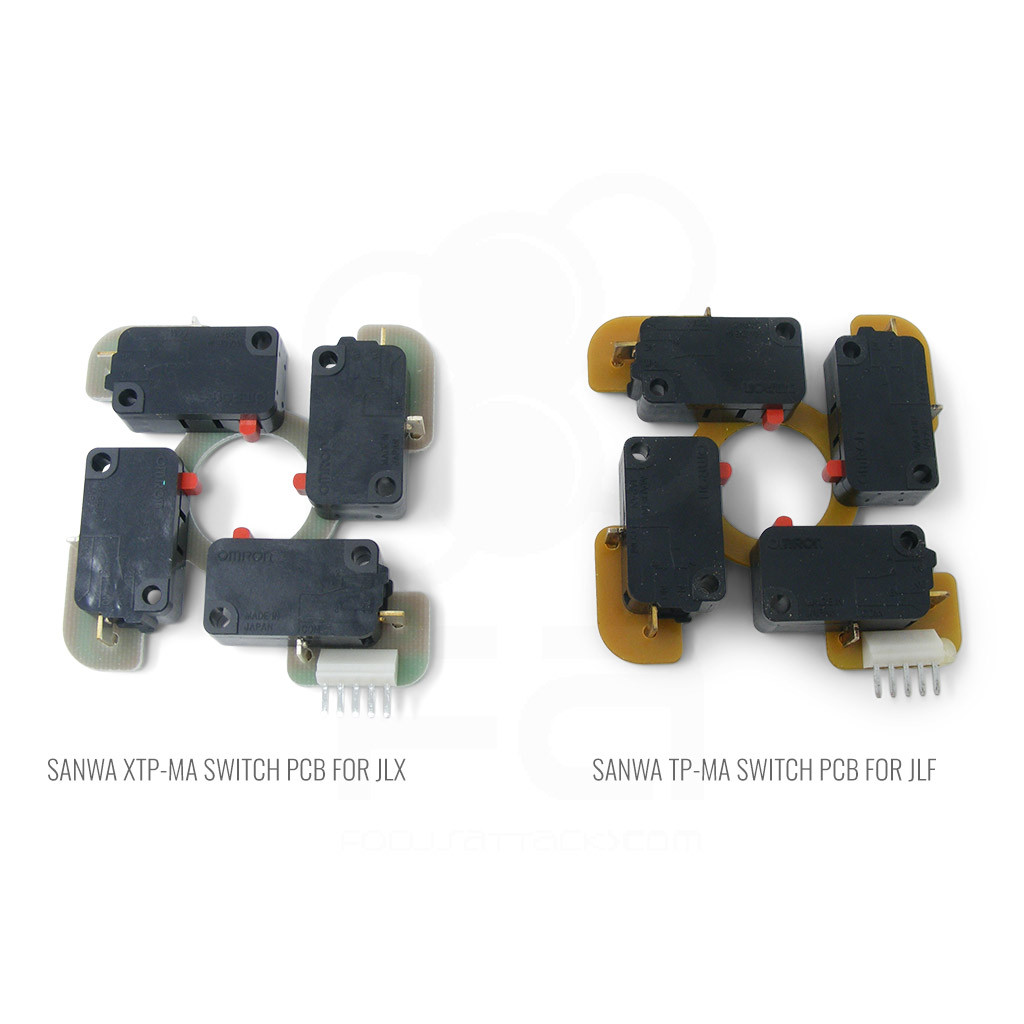

• The material of the micro printed circuit board is changed from paper phenol to CEM-3. It is less likely to warp than paper phenol and has improved durability.

GT-8X Restrictor Plate

Sanwa introduced the GT-8X restrictor plate with its line of JL-C performance mods. This gate is now the default in the JLX. This plate is compatible with the GTN series of lever guide tips/inserts:

• Sanwa GTN-Y Octagonal Restrictor Gate Insert
• Sanwa GTN-VI Round Restrictor Gate Insert
• Sanwa GTN-R Square Mod Type I Restrictor Gate Insert
• Sanwa GTN-B Square Mod Type II Restrictor Gate Insert

Guide Tips

Guide Tips are inserts for the GT-8X Square Restrictor Gate that comes with the Sanwa JLX family. Each guide is color-coded and designed to provide a unique enhancement to lever travel, from the tried-and-true octagonal control of the yellow GTN-Y to the hybrid rounded square of the GTN-B.

Wide Compatibility with Prior Sanwa accessories

While the JLX is a marked departure from its previous model, many of the accessories, such as balltop and battops that use the M6 threading, still work with Sanwa's newest hardware. This is great news for most players who invested in Sanwa's lever ecosystem. However, guide-tips/inserts that were compatible with the JLF may not work with the GT-8X restrictor plate. Some of the newer accessories and performance mods include:

• Sanwa JLF Violet Spring (1, 1.5 Tension Load)
• Sanwa JLF Yellow Spring (1.3, 2 Tension Load)
• Sanwa JLF Blue Spring (1.5, 1.5 Tension Load)
• Sanwa JLF Red Spring (2, 2 Tension Load)
• Sanwa JLF P-5 Actuator
• Sanwa JLF P-R Actuator
• Sanwa JLF P-B Actuator

JLX2 to JLF Compatibility Notes

Certain components that comprise the JLX2 are compatible with the original JLF-TP-8YT.  However, some are not. It's important to know this before purchasing individual parts in an attempt to upgrade the JLF.  It is recommended that you do not perform this, as the mix of different materials may lead to a degraded experience.

• LB-35 sold separately.
• JLX-P-4: JLX dedicated bearing (Incompatible with JLF-P-4)
• JLX-P-2: M base dedicated to JLX2 (Incompatible with JLF-P-2)
• JLX2-MW: Washer for JLX2 M base (Incompatible with JLF-MW)
• XTP-MA: Printed circuit board with JLX micro (Compatible with JLF)
• JLF-P-W and GT-8X are compatible with JLF and are already on sale as custom parts for JLF.

What's Included?

You will receive the following with your purchase:

• JL-PP1 Dustwashers
• JL-P1 Mounting Plate

Balltops and other mounting plates are available separately.
