Seimitsu LS-32/LS-38 Replacement Shaft
Price:
$5.45 (USD)
Brand
SKU
SEIMITSU-LS32-SHAFT-SET
Weight
1.48 Ounces
Availability
Ships within 1-2 business days
Shipping
Calculated at checkout
Current Stock
9
-
Product Description

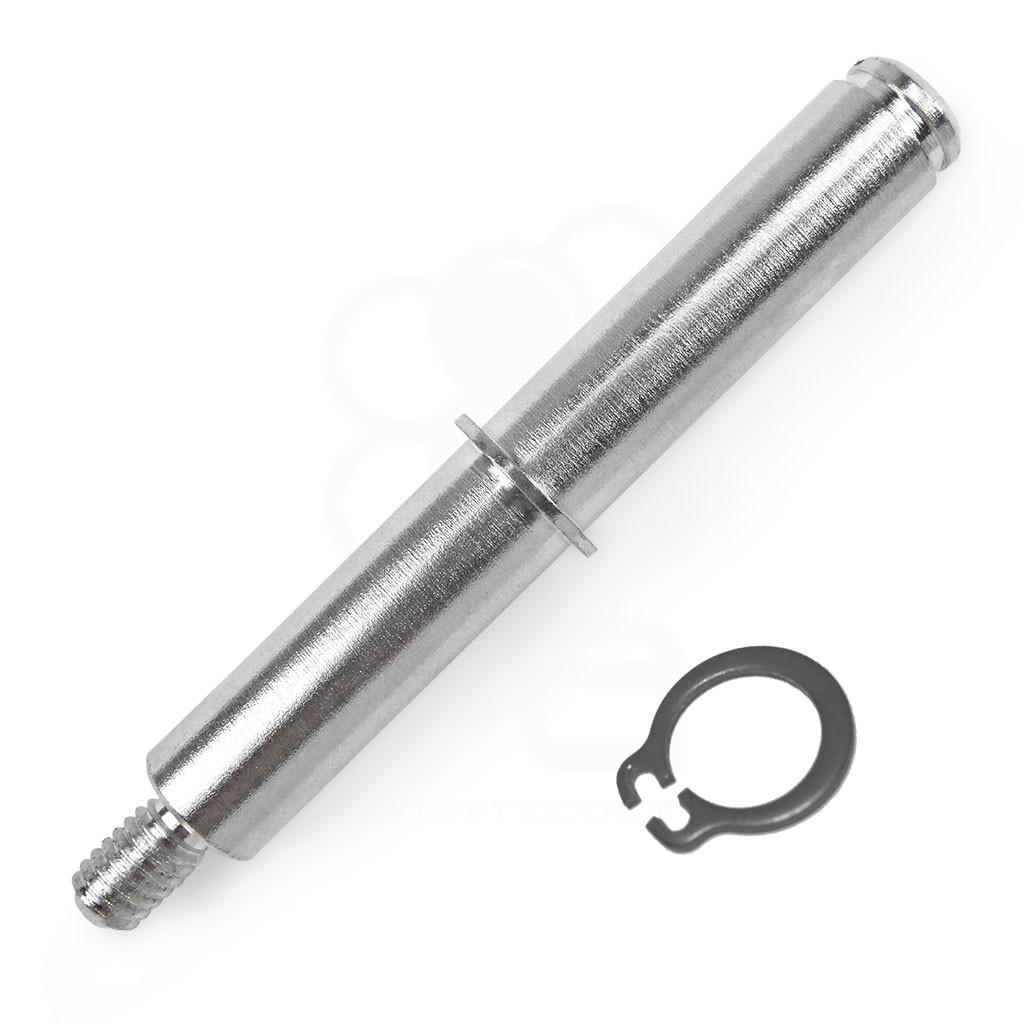

The Seimitsu LS-32 shaft replaces a worn shaft for Seimitsu LS-32-01 Joystick and family of Seimitsu LS-38 and 38-01 joysticks.
E-Clip, Flat Screws Included
The original Seimitsu LS-32 shaft C-clip is incompatible, due to the e-clip area diameter needed for the hollow shaft. Additionally, once removed, the C-clip cannot be reinstalled onto the LS-32 without special tools. Each LS-32 hollow shaft will include a wider diameter e-clip that will fit this model. To address the e-clip's girth, we provide two replacement screws with a flatter pan head. These screws will install into the topmost restrictor guide. Please click the "Install" tab for a quick guide to remove and replace the existing shaft with hollow shafts.
Install - First, use a pair of needle nose pliers to remove the c-clip. You will not recover the c-clip's original shape once removed.
- Next, lift the original shaft from its base.
- Place the hollow shaft into the LS-32 base.
- Remove the two short screws that attach the dark glue subguide to the joystick lever.
- Replace these screws with the flatter pan head screws that are provided with the hollow shaft.
- Use the needle nose plier to attach the larger e-clip provided with the hollow shaft. The finished result should resemble the photo below (hollow shaft model shown, no longer available):
-
