Sanwa XTP-M3L1 B-Type Adjustable Jump Control PCB Assembly for JLF, JLX and JLX2

Please do not use with the Sanwa JLF P-R or P-B Actuator.

These specific actuators are designed to engage with the directional microswitches faster, which cancels out the effectiveness of the XTP-M3L1 PCB and may risk accidental up inputs.

The Sanwa XTP-M3L1 is designed to reduce accidental jump inputs while maintaining the familar clicky feel of a standard microswitch. With a special switch similar to the Sanwa JLX TPML-MA Adjustable Silent Leaf Microswitch PCB Assembly, this PCB focuses on the up direction to keep prospective competitive players firmly grounded, jumping only when intended.

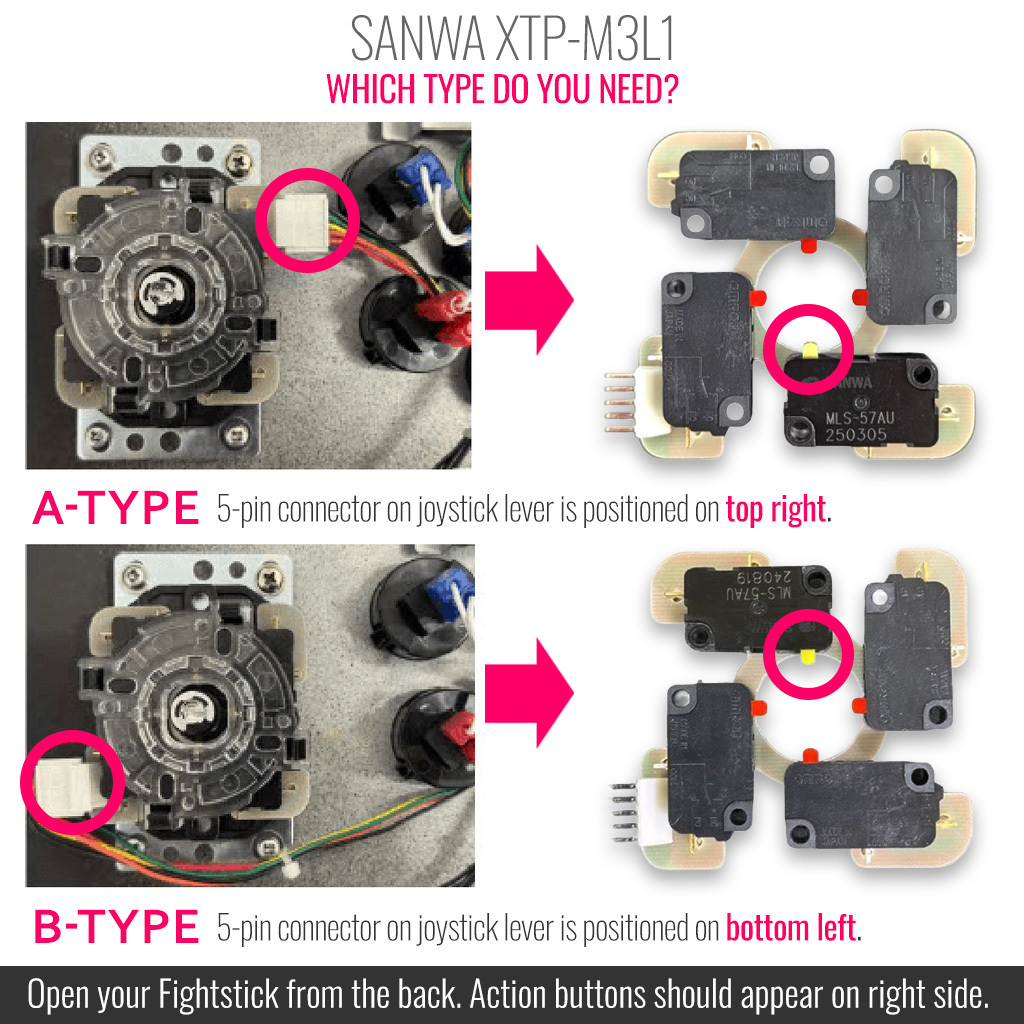

B-Type Configuration: Know Before You Buy

Sanwa designed two versions of the TP-M3L1 PCB accomodate two joystick lever mounting orientations. To know which way your existing Sanwa lever is mounted, you'll first need to open your Fightstick. Typically this is accomplished by removing screws from the bottom of the hardware. When viewing inside the hardware, with the action buttons positioned to the right, check where your 5-pin female harness appears.

Dial It In

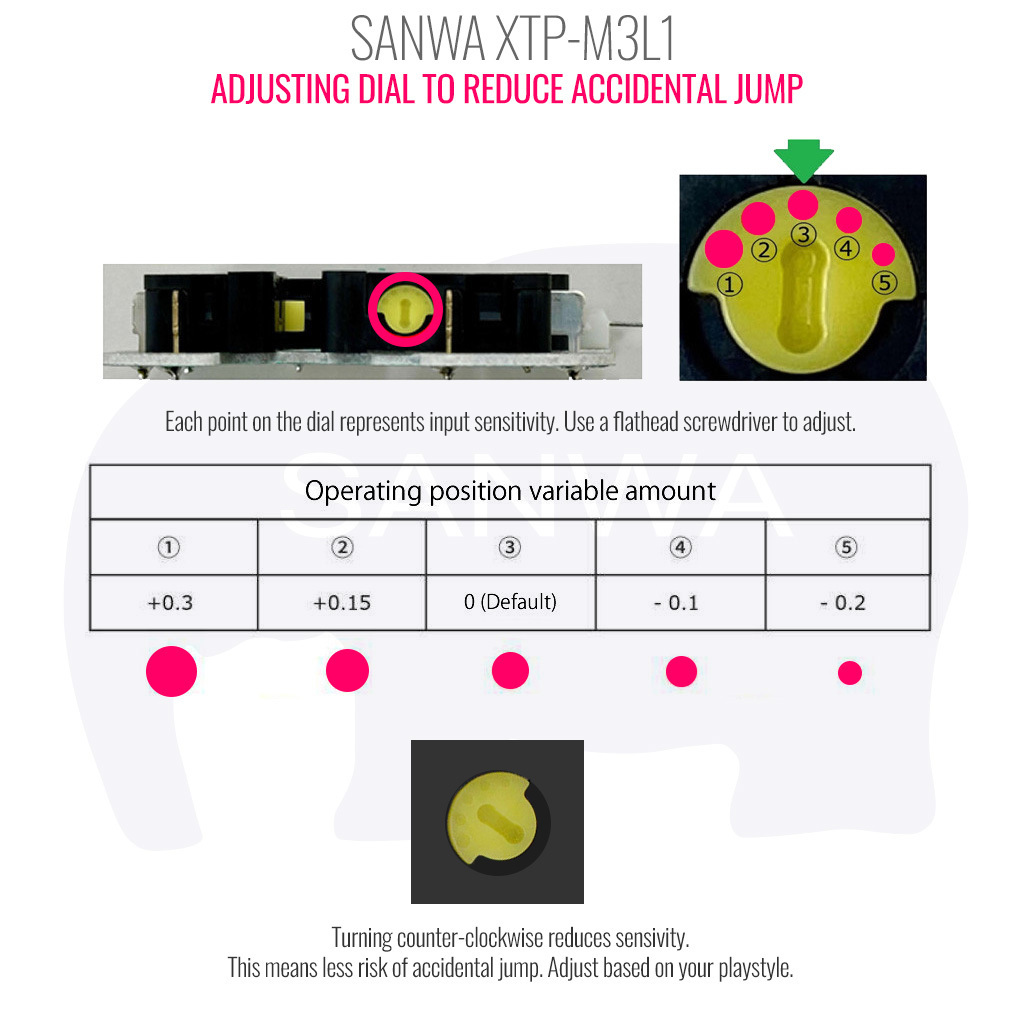

The magic of the XTP-M3L1 lies with the single adjustable microswitch representing "jump".  Borrowing a page from their TPML line, turning the tiny switch dial counter-clockwise using a small flathead screwdriver decreases the engage sensitivity of the "up" direction. You can adjust this to your playstyle.

Compatible with Sanwa JLF, JLX1 and JLX2 Levers

In addition to the more recent JLX2 and short-lived JLX, the XTP-M3L1 also works with the Sanwa JLF-TP-8YT Joystick, giving the ever-popular classic lever enhanced control.

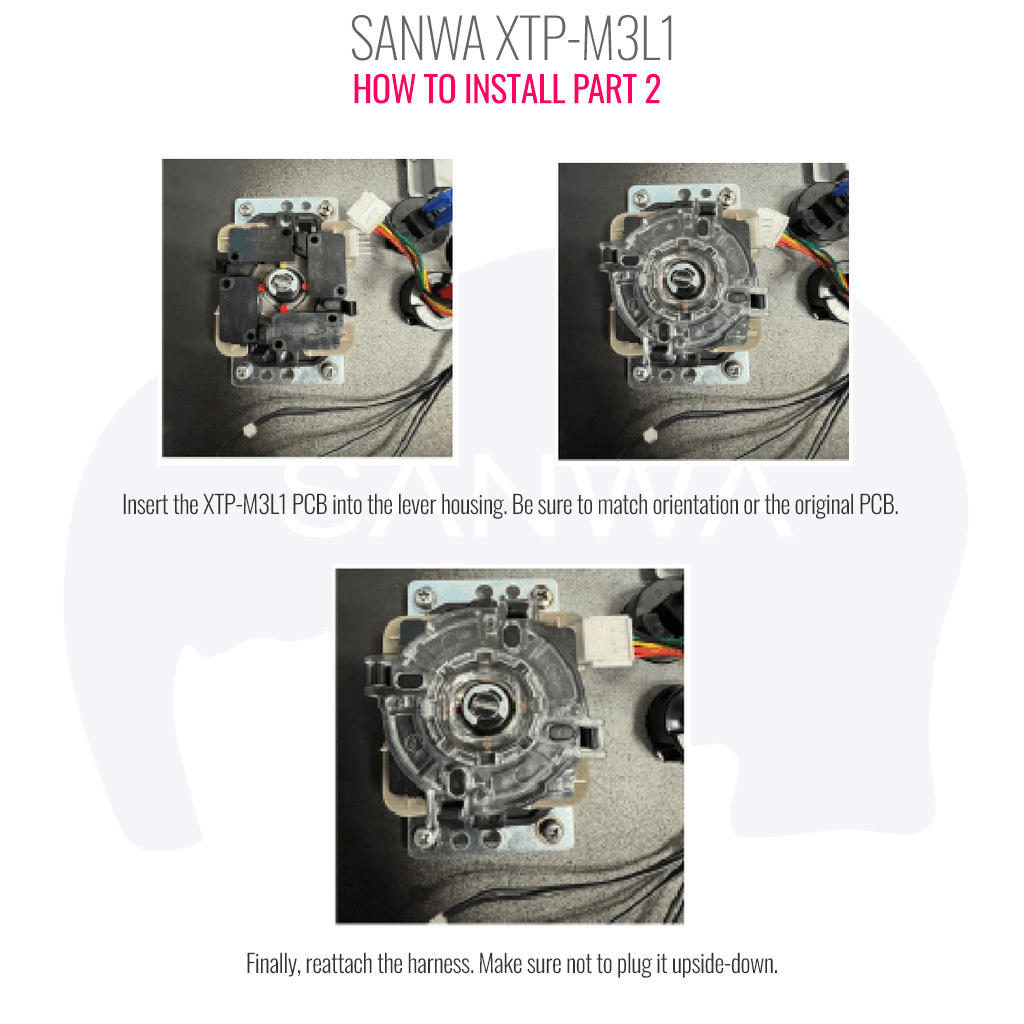

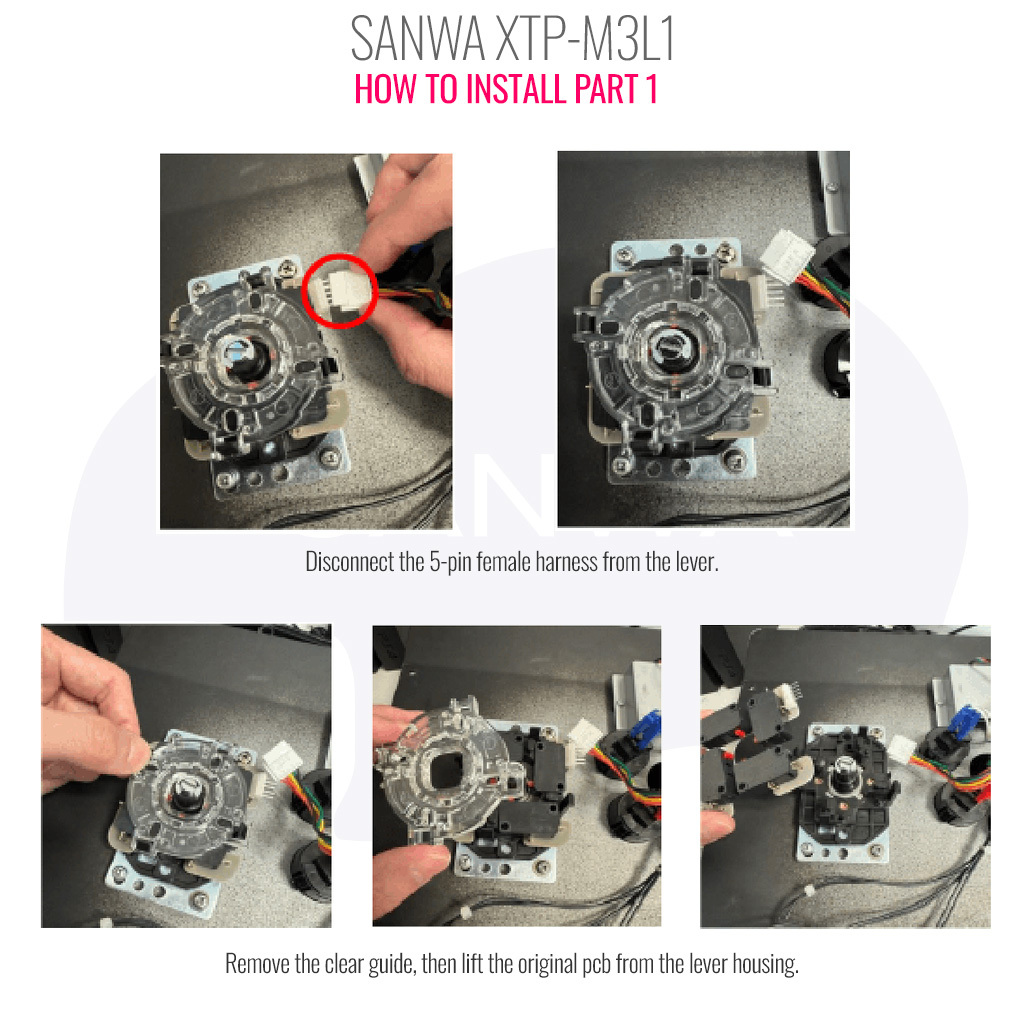

How to Install

Follow these helpful instructions to replace your original microswitch with the XTP-M3L1 PCB:
